John Deere 7720 Tests

John Deere 7720 tractor photo
2004 - 2007
7020 Series
Row-Crop tractor
Series map:
OCED Tractor Test 1833

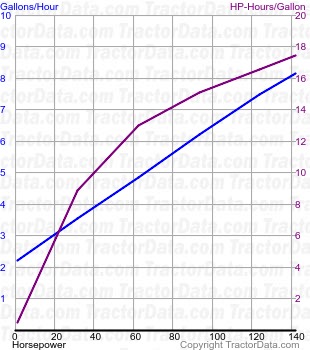

7720 fuel use from test 425
OCED Tractor Test 1833
Diesel PowrQuad-Plus 4WD
March 30 - April 21, 2004
Link: OCED Tractor Test 1833 file
PTO performance
Max power159.79 hp
119.2 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated engine speed141.89 hp
105.8 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated PTO speed150.58 hp
112.3 kW
Fuel use8.3 gal/hour
31.4 l/hour
Drawbar performance
Max power129.08 hp
96.3 kW
Fuel use8.1 gal/hour
30.7 l/hour
Max pull20604 lbs
9345 kg
