Kioti LK3054

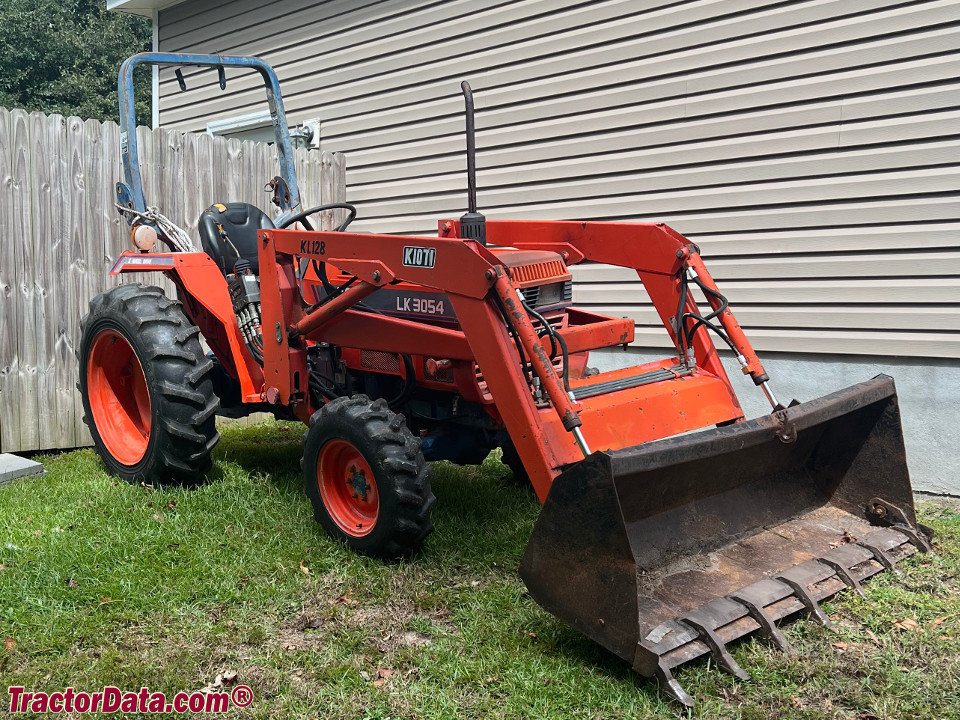

Kioti LK3054 tractor photo
1993 - 2003
LK Series
Compact Utility tractor
Series map:
LK3052
LK3054
LK3504
30.5hp
30.5hp
35.0hp
Production
ManufacturerKioti (a part of Daedong)
Compact Utility tractor
Built in Daegu, South Korea
Original price$14,000
Variants
LK30522WD
LK30544WD
Kioti LK3054 Engine
Daedong 1.4L 3-cyl diesel
Fuel tank7.5 gal
28.4 L
Engine details ...
Kioti LK3054 Power
Engine (gross)30.5 hp
22.7 kW
PTO (claimed)24.5 hp
18.3 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Steeringpower
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Typeopen center
Pump flow7 gpm
26.5 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)2150 lbs
975 kg
Power Take-off (PTO)
Rear PTOlive *Two-stage clutch
Clutchoverrunning
Rear PTO Type540/1000 (1.375)
Front PTO Type2600
Dimensions & Tires
Wheelbase64.6 inches
164 cm
Weight2580 lbs
1170 kg
Front tire6-14
Rear tire9.5-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
LK3054 references literature
The Leader of the Pack published in 1999, by Kitoi
LK3054 - 4WD published by Kitoi
