Belarus 1770
|
|
| Production | |
| Distributor | Belarus |
| Manufacturer | XTZ |
| Four-wheel Drive (4WD) tractor | |
| Built in Kharkiv, Ukraine | |
| Original price was $44,000 in 1997 | |
| Belarus 1770 Engine | |
| Belarus 9.2L 6-cyl diesel | |
 Engine details ... |
| Belarus 1770 Transmission | |
| 12-speed four-speed power shift | |
 Transmission details ... |
| Belarus 1770 Power | |
| Engine | 185 hp 138.0 kW |
| Drawbar (claimed) | 151 hp 112.6 kW |
| PTO (claimed) | 171 hp 127.5 kW |
| Drawbar (tested) | 148.11 hp 110.4 kW |
| PTO (tested) | 167.6 hp 125.0 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | articulated hydraulic power |
| Pneumatic shoe brakes | |
| Cab standard. | |
| Photos | |
 | |

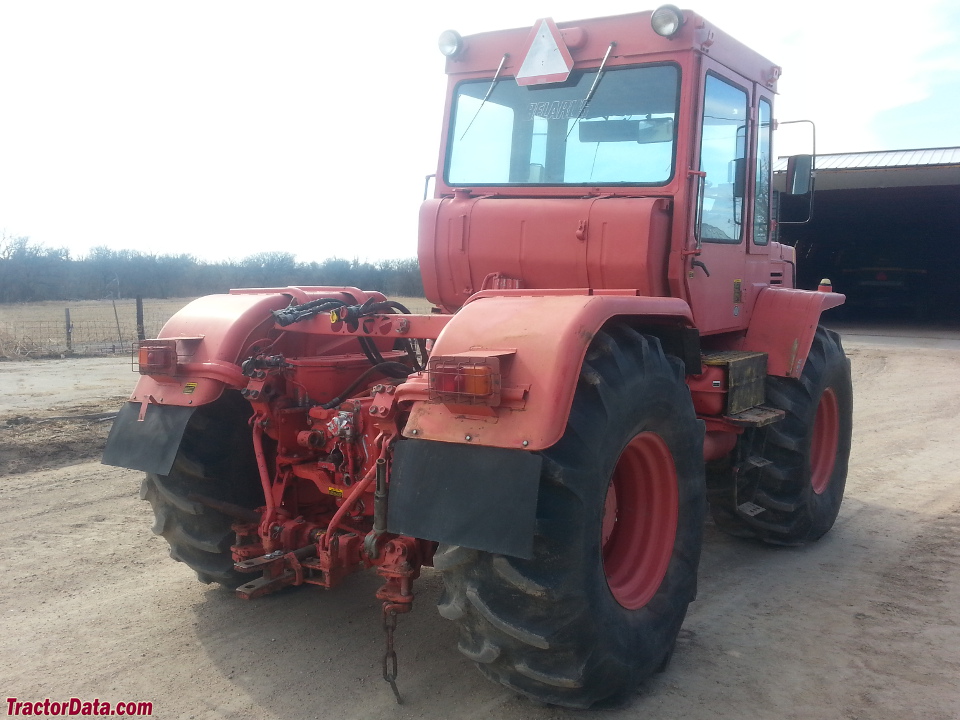

 Belarus 1770 photos... | |
| Capacity | |
| Fuel | 83.2 gal 314.9 L |
| Hydraulic system | 10.25 gal 38.8 L |
| Hydraulics | |
| Type | open center |
| Capacity | 10.25 gal 38.8 L |
| Pressure | 2275 psi 156.9 bar |
| Valves | 2 |
| Pump flow | 28.2 gpm 106.7 lpm |
| Tractor hitch | |
| Rear Type | III |
| Rear lift | 12480 lbs 5660 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@2025 |
| 1000@2050 | |
| Dimensions & Tires | |
| Wheelbase | 112.6 inches 286 cm |
| Weight | 19585 lbs 8883 kg |
| Front tire | 23.1-26 |
| Rear tire | 23.1-26 |
 Full dimensions and tires ... | |
| References | |
 | |
| Model 1770 published in 1988, by Belarus |
