John Deere 3130



John Deere 3130 tractor photo
1973 - 1979
Utility tractor
Series map:
3030
3130
69.9kw
72.0kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
The John Deere 3130 saw a redesign in 1975 at tractor serial number 182150. The front, hood, and decals were changed to a more rounded appearance. The 3130 was sold as the 2840 in the United States.
Variants
3130LS12-speed
John Deere 3130 Engine
John Deere 5.4L 6-cyl diesel
Engine details ...
John Deere 3130 Transmissions
12-speed two-speed power shift
6-speed sliding gear
Transmission details ...
John Deere 3130 Power
Engine (gross)96.5 hp
72.0 kW
Engine (net)87.2 hp
65.0 kW
PTO (claimed)75.1 hp
56.0 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Wet disc brakes
Open operator station. Cab optional.
Photos
Early John Deere 3130 with cab
John Deere 3130 photos...
Capacity
Fuel28 gal
106.0 L
Hydraulic system15 gal
56.8 L
Hydraulics
Typeclosed center
Capacity15 gal
56.8 L
Pump flow23 gpm
87.1 lpm
Tractor hitch
Rear TypeII
Controlposition control and lower-link draft sensing
Rear lift7452 lbs
3380 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@2200
 1000@2200
Dimensions & Tires
Wheelbase96.9 inches
246 cm
Weight8200 lbs
3719 kg
Front tire7.50-18
2WD Rear tire18.4-34
Full dimensions and tires ...
John Deere 3130 attachments
front-end loader
Attachment details ...
3130 Serial Number Location

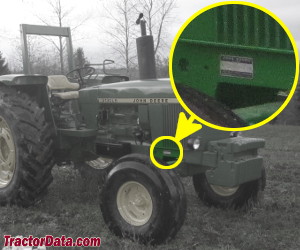

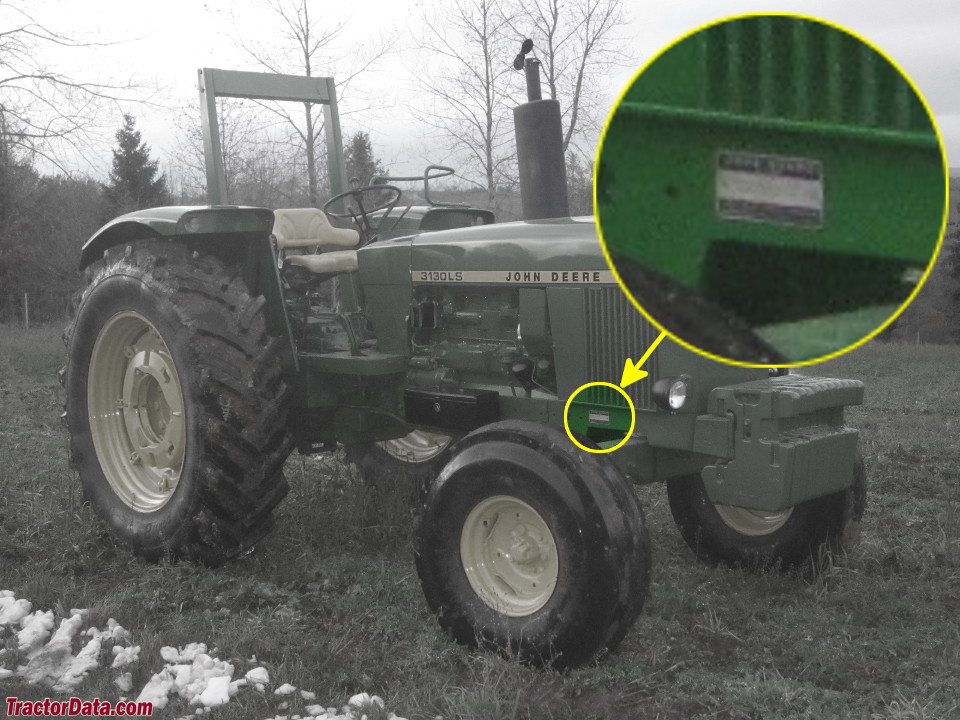

John Deere 3130 serial number location
Serial number plate on the front-right of the 3130 tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps28
 55
Charging volts14
Batteries2
Battery volts12
Battery AH88
References
3130 references literature
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Tractors 40 to 80 hp published in 1978, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere
