Tractors > Versatile > 855

Versatile 855

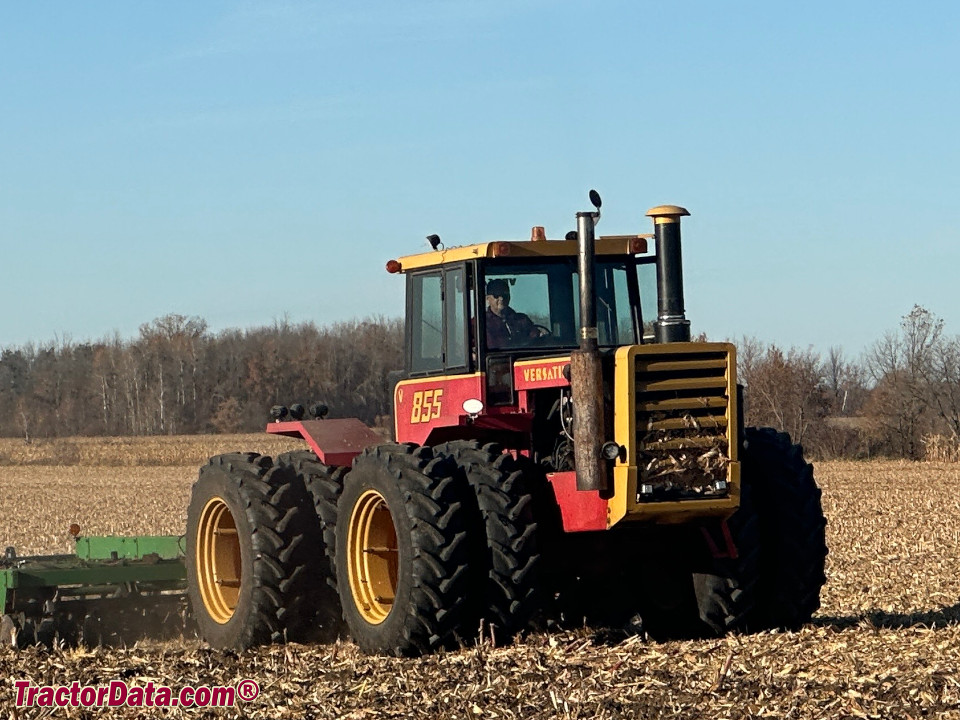

Versatile 855 tractor photo
1978 - 1983
3 Series
Four-wheel Drive (4WD) tractor
Series map:
855
250.0hp
Production
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $85,000 in 1983
Versatile 855 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Versatile 855 Transmission
12-speed gear
Transmission details ...
Versatile 855 Power
Engine250 hp
186.4 kW
PTO (claimed)212 hp
158.1 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab with air-conditioning.
Photos
No photos of the Versatile 855 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel185 gal
700.2 L
Hydraulic system21 gal
79.5 L
Hydraulics
Typeopen center
Capacity21 gal
79.5 L
Pressure2250 psi
155.1 bar
Valves4
Pump flow23.6 gpm
89.3 lpm
Steering flow26.1 gpm
98.8 lpm
Tractor hitch
Rear TypeIII OptOptional
Controlposition and depth control
Rear lift (at ends)18270 lbs
8287 kg
Rear lift (at 24"/610mm)12370 lbs
5611 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM1000
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight20,150 lbs
9140 kg
Front tire20.8-38
Rear tire20.8-38
Full dimensions and tires ...
855 Serial Numbers
Location:Serial number plate on the cab door post.
1978855 78 150501
1979855 79 150751
1980855 80 151151
1981855 81 151401
1982855 82 151601
1983855 83 151801
Final855 83 151975

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Batteries2
Battery CCA900
Battery volts12
Battery Group80
References

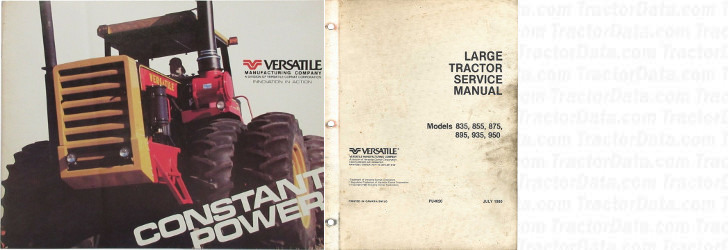

855 references literature
Constant Power published in 1979, by Versatile
Large Tractor Service Manual (PU4020) published in 1980
