Transmissions overview | |
8-speed mechanical shuttle | |
8-speed hydraulic shuttle |
Transmission | |
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |
Oil capacity | 45.5 qts 43.1 L |
Four gears in two ranges with reverser lever. |

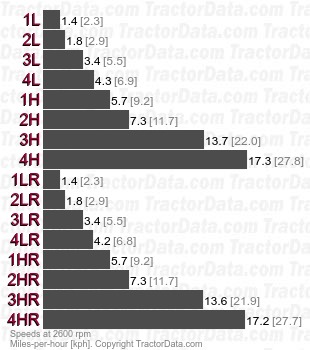

Speeds | |
With 14.9-28 R1 rear tires. | |
![]() |
Transmission | |
Type | hydraulic shuttle |
Gears | 8 forward and reverse |
Clutch | wet disc |
Oil capacity | 45.5 qts 43.1 L |
Four gears in two ranges with reverser lever. |
Speeds | |
With 14.9-28 R1 rear tires. | |
![]() |
