| 1991 - 1997 |
Utility tractor |
|
Series map:
L4350
L4850
47.5hp
53.0hp
Transmissions overview |
8-speed mechanical shuttle |
8-speed hydraulic shuttle |
Transmission |
Type | mechanical shuttle
|
Gears | 8 forward and reverse
|
Clutch | dry disc
|
Oil capacity | 45.5 qts 43.1 L
|
Four gears in two ranges with reverser lever. |

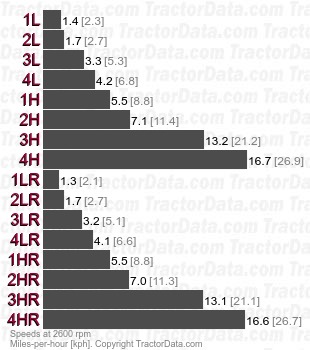

Speeds |
With 12.4-28 R1 rear tires. |
|
Transmission |
Type | hydraulic shuttle
|
Gears | 8 forward and reverse
|
Clutch | wet disc
|
Oil capacity | 45.5 qts 43.1 L
|
Four gears in two ranges with reverser lever. |
Speeds |
With 12.4-28 R1 rear tires. |
|
