| | 1984 - 1990 |
| L Series | | Compact Utility tractor |
|
Series map:
L3750
L4150
45.0hp
50.0hp
| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | single dry plate
|
| Oil capacity | 42.4 qts
40.1 L
|
| Four gears in two ranges with mechanical shuttle. Optional hydraulic shuttle with dashboard shift. |
| Speeds |
|

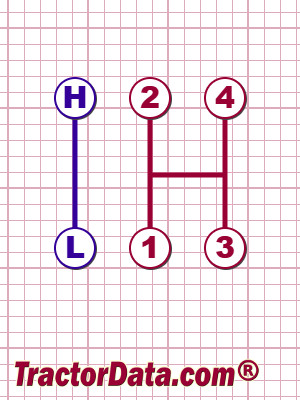

| Shift Pattern |
 |
