Tractors > Kubota > L3750

Kubota L3750 Transmission



Kubota L3750 tractor photo
1984 - 1990
L Series
Compact Utility tractor
Series map:
L3350
L3750
L4150
40.0hp
45.0hp
50.0hp
Transmission
Typepartially synchronized
Gears8 forward and reverse
Clutchdual dry plates
Oil capacity42.4 qts
40.1 L
Four gears in two ranges with mechanical shuttle. Optional hydraulic shuttle with dashboard shift.
Speeds

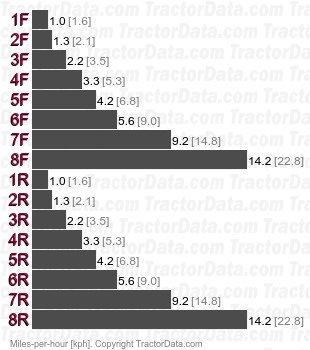

L3750 partially synchronized speeds
Shift Pattern

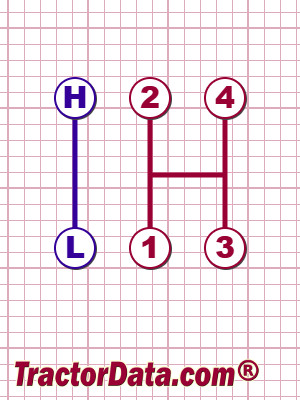

Kubota L3750 transmission controls
