Transmissions overview | |
8-speed mechanical shuttle | |
8-speed partially synchronized | |
8-speed power shift |
Transmission | |
Type | mechanical shuttle |
Gears | 8 forward and 7 reverse |
Clutch | dry plate |
Oil capacity | 32.8 qts 31.0 L |
Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range. |

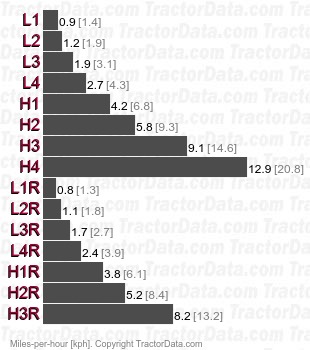

Speeds | |
![]() |

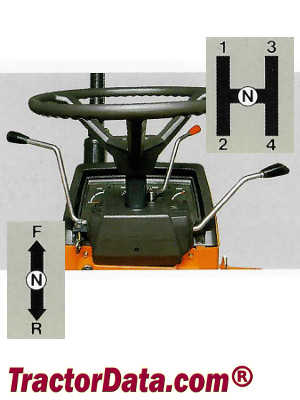

Shift Pattern | |
![]() |
Transmission | |
Type | partially synchronized |
Gears | 8 forward and 7 reverse |
Oil capacity | 32.8 qts 31.0 L |
Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges. |
Speeds | |
![]() |
Transmission | |
Transmission | Glide Shift |
Type | power shift |
Gears | 8 forward and reverse |
Clutch | wet disc |
With 11.2-24 rear tires. |

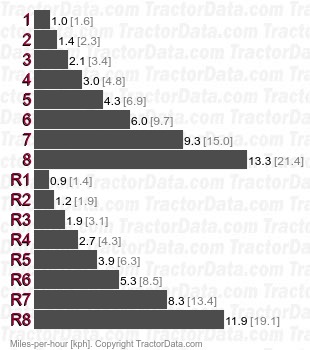

Speeds | |
![]() |
