Transmissions overview | |
8-speed mechanical shuttle | |
8-speed partially synchronized |
Transmission | |
Type | mechanical shuttle |
Gears | 8 forward and 7 reverse |
Oil capacity | 32.8 qts 31.0 L |
Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range. |

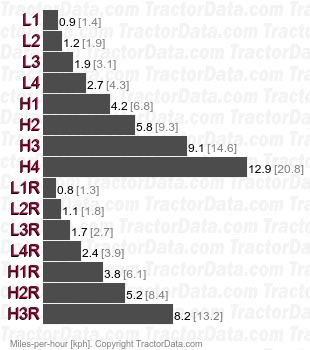

Speeds | |

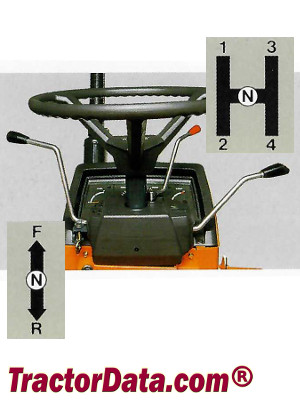

Shift Pattern | |
Transmission | |
Type | partially synchronized |
Gears | 8 forward and 7 reverse |
Oil capacity | 32.8 qts 31.0 L |
Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges. |
Speeds | |
