Kubota L2500
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Built in Japan | |
| Variants | |
| L2500F | 2WD |
| L2500DT | 4WD |
| Kubota L2500 Engine | |
| Kubota 1.4L 3-cyl diesel | |
| Fuel tank | 7.7 gal 29.1 L |
 Engine details ... | |
| Kubota L2500 Transmission | |
| 8-speed gear | |
 Transmission details ... |
| Kubota L2500 Power | |
| Engine | 27 hp 20.1 kW |
| PTO (claimed) | 22.5 hp 16.8 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Steering | manual |
| Steering | power OptOptional |
| Mechanical wet disc brakes | |
| Two-post fixed ROPS. | |

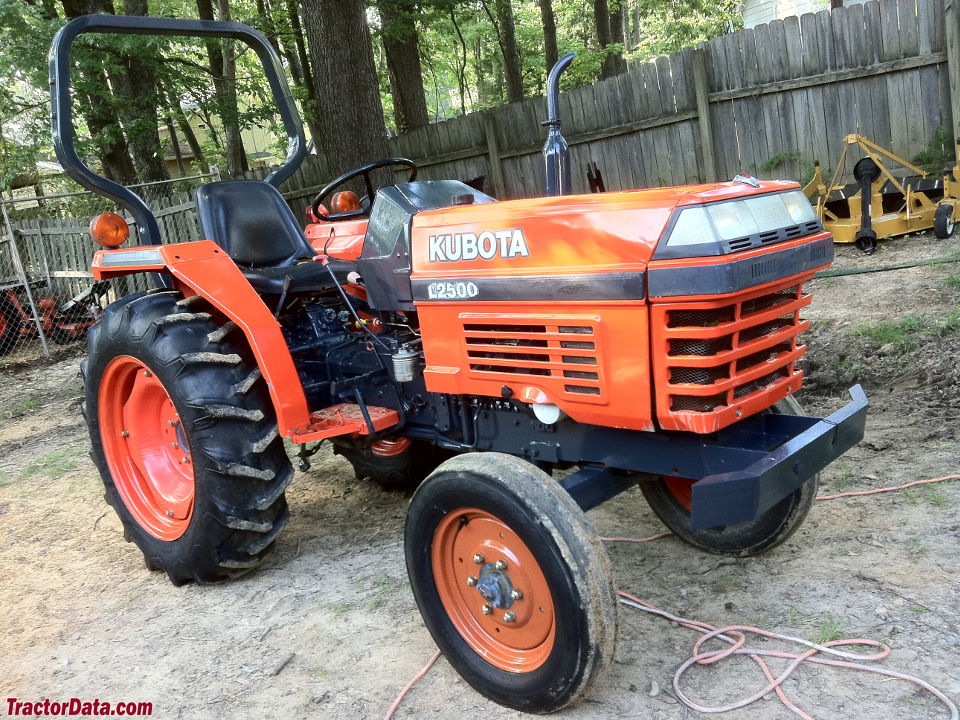

| Photos | |
 | |
 Kubota L2500 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2205 psi 152.0 bar |
| Pump flow | 7.2 gpm 27.3 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control with optional draft control |
| Rear lift (at ends) | 1985 lbs 900 kg |
| Rear lift (at 24"/610mm) | 1435 lbs 650 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Clutch | overrunning |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2430 |
| 1000@2410 | |
| Dimensions & Tires | |
| 4WD Wheelbase | 61.6 inches 156 cm |
| Weight | 2208 lbs 1001 kg |
| Front tire | 5.00-15 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Kubota L2500 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging amps | 30 |
| Battery CCA | 490 |
| Battery volts | 12 |
| Battery AH | 65 |
| References | |
 | |
| 1999 Products published by Kubota | |
| L2500 Diesel Tractor published in 1998, by Kubota |
