Kubota B5100
| | 1978 - 1984 |
| Sub-Compact Utility tractor |
|
Series map:
B5100
B6100
12.0hp
14.0hp
| Production |
| Manufacturer | Kubota
|
| Sub-Compact Utility tractor |
| Built in Japan |
| Variants |
| B5100DT | 4WD
|

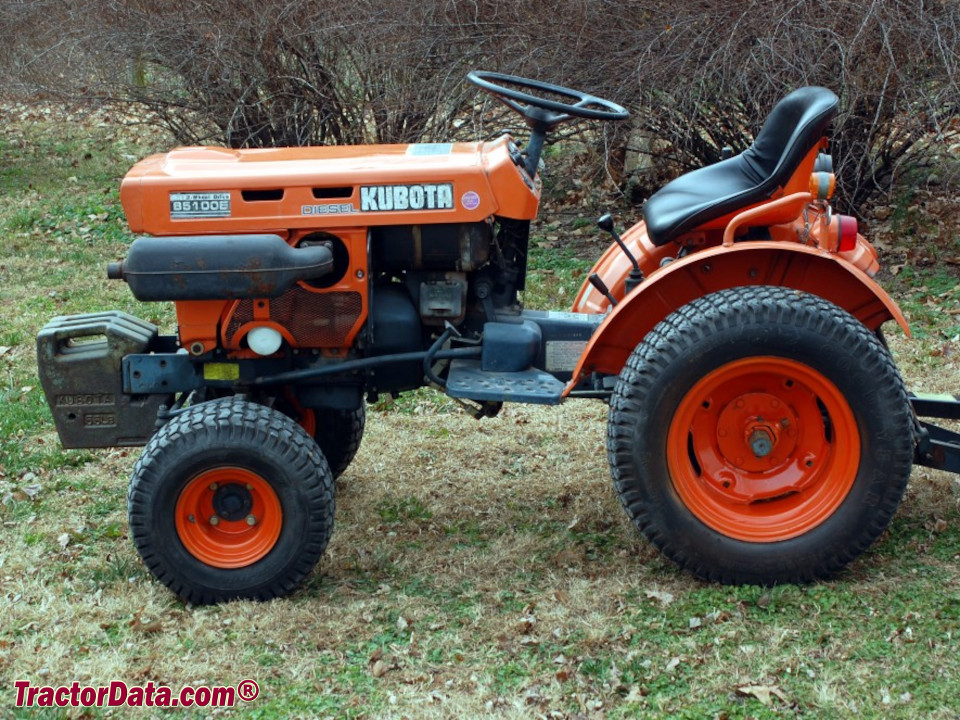

| B5100E | 2WD
|
| Kubota B5100 Power |
| Engine | 12 hp
8.9 kW
|
| PTO (claimed) | 10 hp
7.5 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Manual steering |
| Mechanical wet disc brakes |
| Open operator station. Two-post fixed ROPS available. |
| Hydraulics |
| Type | open center
|
| Pump flow | 3.17 gpm
12.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 300 lbs
136 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2687
|
| | 963@3000
|
| Front PTO Type | 3000
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Battery AH | 35
|
| References |
 |
| Diesel B B5100/B6100/B7100 published in 1982, by Kubota |
| Operator's Manual published in 1978, by Kubota |
| Tractors and Excavators published in 1981, by Kubota |
| Tractors and Excavators published in 1982, by Kubota |
| Page information |
 |
| Copyright 2026 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on August 4, 2026 |
