Kubota B2100
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Kubota B2100 Engine | |
| Kubota 1.0L 3-cyl diesel | |
 Engine details ... |
| Kubota B2100 Transmissions | |
| 6-speed gear | |
| hydrostatic | |
 Transmission details ... |
| Kubota B2100 Power | |
| Engine (gross) | 21 hp 15.7 kW |
| Gear PTO (claimed) | 17 hp 12.7 kW |
| Hydro PTO (claimed) | 16 hp 11.9 kW |
| Mechanical | |
| Four-wheel drive | |
| Steering | power |
| Wet disc brakes | |
| Two-post ROPS. | |

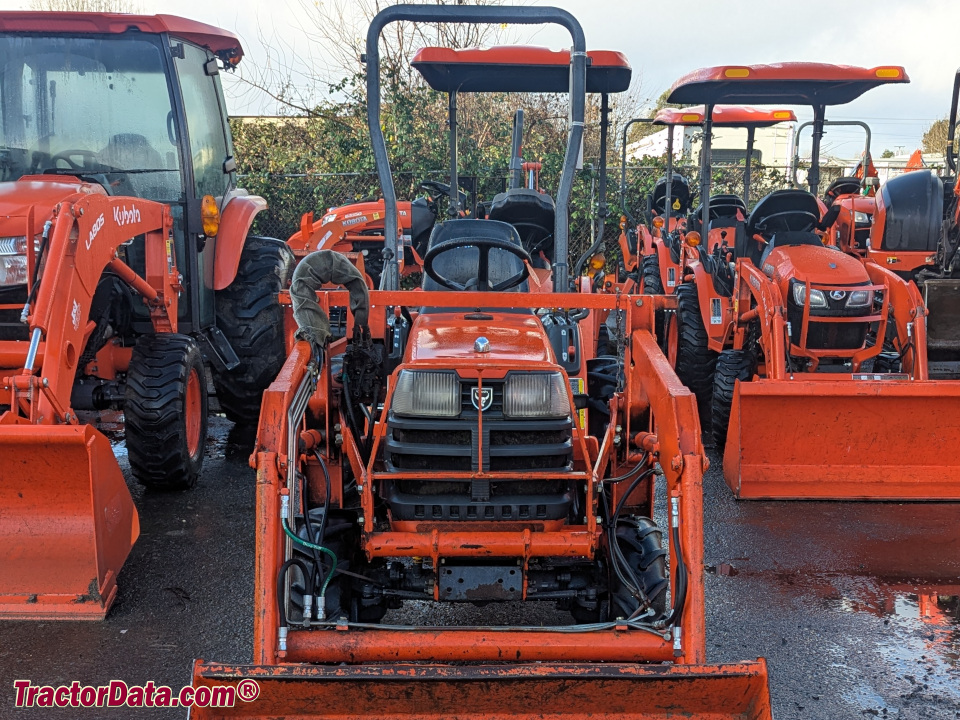

| Photos | |
 | |
 Kubota B2100 photos... | |
| Capacity | |
| Fuel | 6.3 gal 23.8 L |
| Hydraulic system | 2.9 gal 11.0 L |
| Hydraulics | |
| Type | open center |
| Capacity | 2.9 gal 11.0 L |
| Pump flow | 5.8 gpm 22.0 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1280 lbs 580 kg |
| Rear lift (at 24"/610mm) | 1015 lbs 460 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2584 |
| Mid PTO Type | 2537 *Kubota 10-tooth |
| Engine RPM | 2537@2600 |
| Dimensions & Tires | |
| Wheelbase | 59 inches 149 cm |
| Weight | 1500 lbs 680 kg |
| Front tire | 6-12 |
| Rear tire | 9.5-16 |
 Full dimensions and tires ... | |
| Kubota B2100 attachments | |
| 54" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| B2100 Serial Numbers | |
| Location: | Clutch/transmission case on right side. |
| Electrical | |
| Ground | negative |
| Battery CCA | 390 |
| Battery volts | 12 |
| References | |
 | |
| 1999 Products published by Kubota |
