Kubota B1750

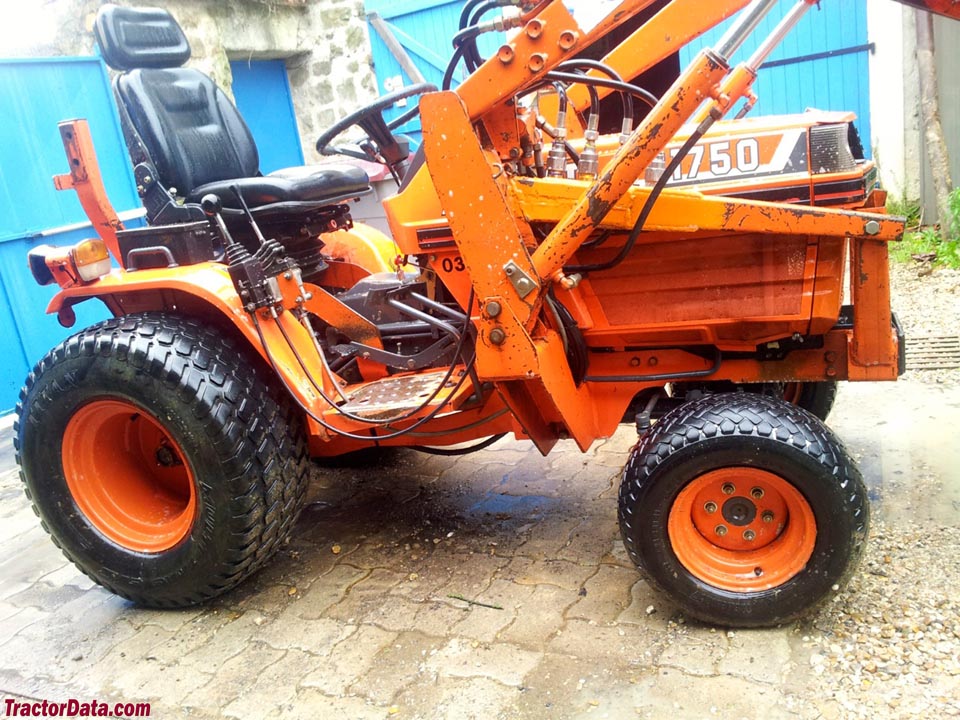

Kubota B1750 tractor photo
1988 - 1996
B Series
Compact Utility tractor
Series map:
B1550
B1750
B2150
17.0hp
20.0hp
24.0hp
Production
ManufacturerKubota
Compact Utility tractor
Variants
B20backhoe-tractor
Kubota B1750 Engine
Kubota 0.9L 3-cyl diesel
Fuel tank4.8 gal
18.2 L
Engine details ...
Kubota B1750 Power
Engine (gross)20 hp
14.9 kW
Gear PTO (claimed)16.5 hp
12.3 kW
Hydro PTO (claimed)15.5 hp
11.6 kW
Mechanical
Two- or four-wheel drive
Steeringmanual
 power ((Optional)
Dry disc brakes
Two-post ROPS.
Hydraulics
Typeopen center
Pump flow5.5 gpm
20.8 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift827 lbs
375 kg
Power Take-off (PTO)
Gear Rear PTOtranmssion
Hydro Rear PTOlive
Rear RPM540 (1.375)
Engine RPM540@2517
858@2517
Mid PTOlive *Mid PTO is linked with the rear PTO.
Mid RPM2455 (Kubota 10 tooth)
Engine RPM2455@2517
Front PTOoptional
Dimensions & Tires
Wheelbase57.9 inches
147 cm
Weight1257 to 1422 pounds
Front tire5.00-10
2WD Rear tire9.5-16
Full dimensions and tires ...
Kubota B1750 attachments
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
B1750 references literature
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota
B1550/B1750/B2150 published in 1989, by Kubota
B1550HST B1750HST (66417-62914) published in 2002
Product Catalog published in 1990, by Kubota
