Advance-Rumely 6A
|
|
| Production | |
| Manufacturer | Advance-Rumely |
| Standard-tread tractor | |
| Built in La Porte, Indiana, USA | |
| Total built | 801 |
| Advance-Rumely 6A Engine | |
| Waukesha 6.6L 6-cyl gasoline | |
| Fuel tank | 25 gal 94.6 L |
 Engine details ... | |
| Advance-Rumely 6A Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Advance-Rumely 6A Power | |
| Drawbar (claimed) | 28 hp 20.9 kW |
| Belt (claimed) | 43 hp 32.1 kW |
| Plows | 4 |
| Drawbar (tested) | 33.57 hp 25.0 kW |
| Belt (tested) | 48.37 hp 36.1 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |

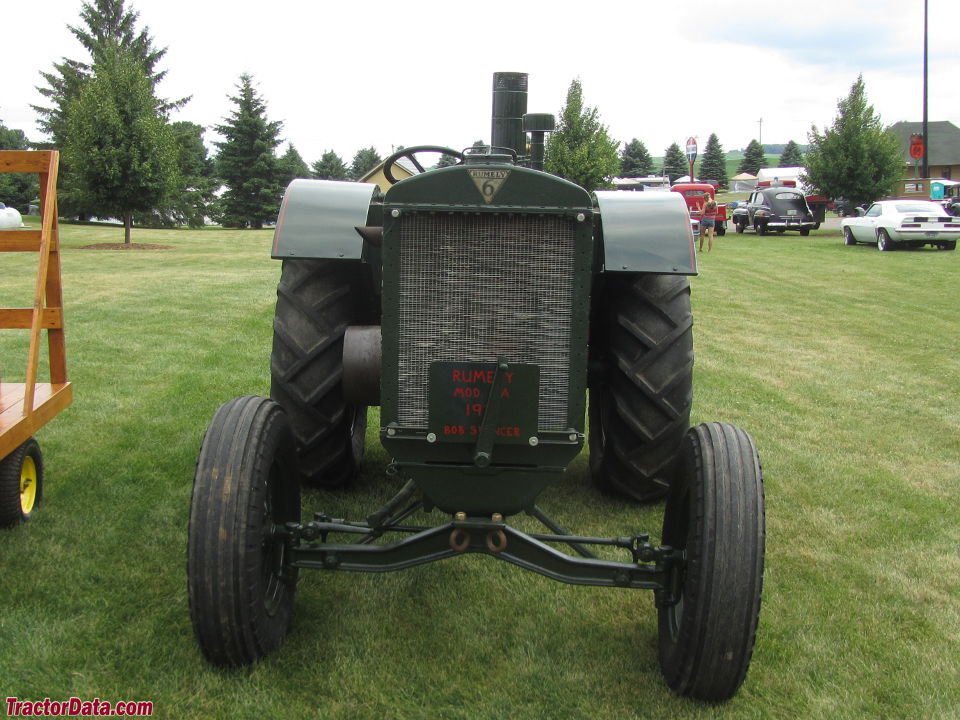

 Advance-Rumely 6A photos... | |
| Dimensions & Tires | |
| Wheelbase | 86 inches 218 cm |
| Weight | 6370 lbs 2889 kg |
| Front tire | 30x6 |
| Rear tire | 48x12 |
 Full dimensions and tires ... | |

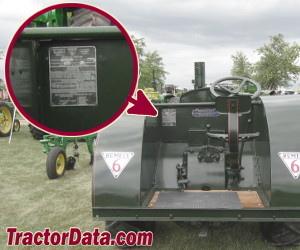

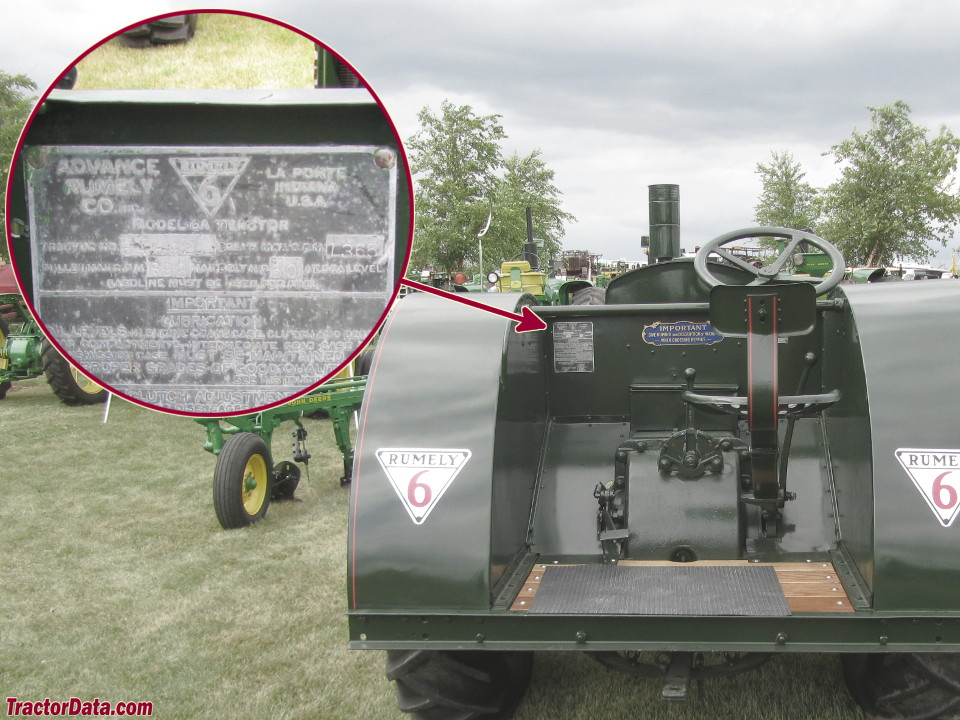

| 6A Serial Number Location | |
 | |
| Information plate on the front of the operator station. |
| 6A Serial Numbers | |
| 1930 | 501 |
| 1931 | 503 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 13 inches 33 cm |
| Width | 8 inches 20 cm |
| RPM | 892 |
| References | |
 | |
| Agricultural Catalog published in 1935, by Allis Chalmers |
