CaseIH 9240

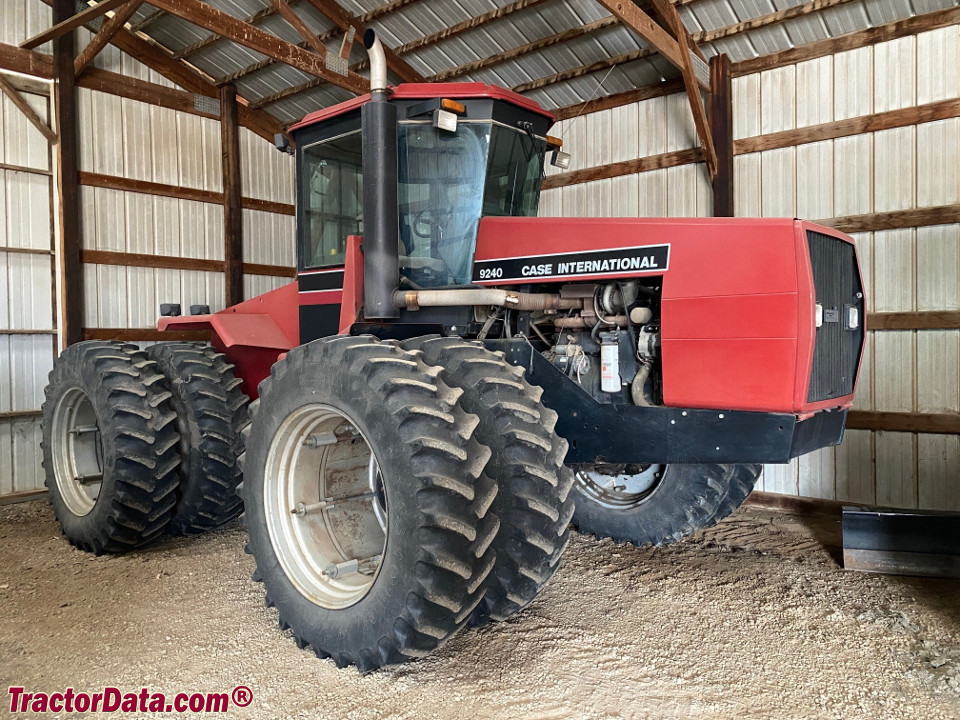

CaseIH 9240 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
9230
9240
9250
235.0hp
235.0hp
300.0hp
Production
ManufacturerCaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $105,000 in 1995
The 9260 and 9240 were the last of the rigid-frame 4WD with four-wheel steering, in the style of the large J.I. Case "crab steer" tractors.
Variants
9240four-wheel steer
9230articulated
CaseIH 9240 Engine
CDC 8.3L 6-cyl diesel
Engine details ...
CaseIH 9240 Transmission
12-speed full power shift
Transmission details ...
CaseIH 9240 Power
Engine235 hp
175.2 kW
PTO (claimed)207 hp
154.4 kW
Drawbar (tested)175.89 hp
131.2 kW
PTO (tested)215.87 hp
161.0 kW
Performance test details ...
Mechanical
Drive4x4 4WD
Steeringfour-wheel hydrostatic power
Integrated hydraulic caliper disc brakes
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.
Photos
CaseIH 9240
CaseIH 9240 photos...
Capacity
Fuel200 gal
757.0 L
Hydraulic system18 gal
68.1 L
Hydraulics
Typeclosed center
Capacity18 gal
68.1 L
Pressure2500 psi
172.4 bar
Valves4
Total flow28 gpm
106.0 lpm
Tractor hitch
Rear TypeIII OptOptional
Controldraft control optional
Rear lift12750 lbs
5783 kg
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type1000
Engine RPM1000@2098
Dimensions & Tires
Wheelbase124 inches
314 cm
Weight28214 lbs
12797 kg
Front tire18.4-38
Rear tire18.4-38
Full dimensions and tires ...
9240 Serial Numbers
Location:Under the left-side steps on front fender
1990JCB0004600
1991JCB0026501
1992JCB0028400
1993JCB0030500
1994JEE0031773
1995JEE0032808

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
9240 references literature
9200 Series 4WD published in 1993, by CaseIH
