CaseIH 5250 Maxxum Transmission

CaseIH 5250 Maxxum tractor photo
1992 - 1997
Maxxum Series
Series:52405250 Maxxum
Transmissions overview
16-speed 4-speed power shift
24-speed creeper
Type:4-speed power shift
Gears:16 forward and 12 reverse
Four power shift gears in four synchronized ranges and shuttle shifting.
With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.

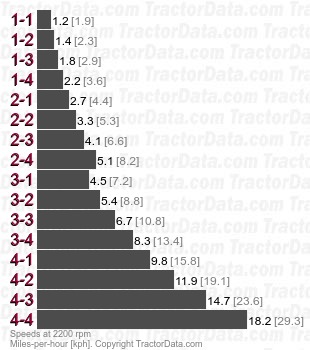

5250 Maxxum  4-speed power shift speeds
Gears:24 forward and 20 reverse
