CaseIH MX200 Magnum Transmission


CaseIH MX200 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
8920
Series:MX180MX200 MagnumMX220
MX210
Transmissions overview
18-speed full power shift
24-speed
Transmission
Type:full power shift
Gears:18 forward and 4 reverse
Clutch:electro-hydrauliclly actuated wet discs
Speeds

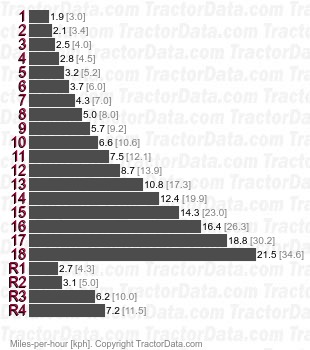

MX200 Magnum  full power shift speeds
Transmission

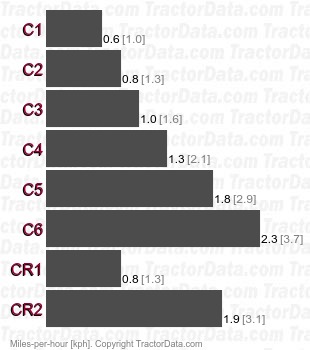

Gears:24 forward and 6 reverse
