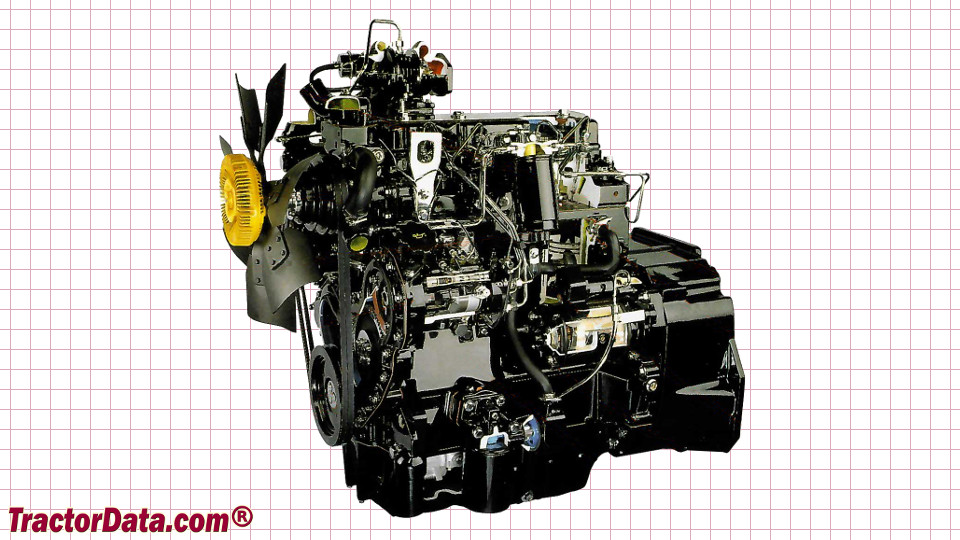

CaseIH MX90C Engine
|
|
| Engine Detail | |
| Perkins | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 243.5 ci 4.0 L |
| Bore/Stroke | 3.937x5.00 inches 100 x 127 mm |
| Power | 90 hp 67.1 kW |
| Fuel system | direct-injection with mechanical governor, rotary injection pump with 5-hole nozzles |
| Air cleaner | dual paper elements |
| Compression | 17.25:1 |
| Rated RPM | 2200 |
| Starter volts | 12 |
| Oil capacity | 9.3 qts 8.8 L |
| Coolant capacity | 16.6 qts 15.7 L |
| CaseIH MX90C Engine | |
 |
