CaseIH C50
|
|
| Production | |
| Manufacturer | CaseIH |
| Utility tractor | |
| Built in Doncaster, England | |
| Original price was $19,700 in 1999 | |
| CaseIH C50 Engine | |
| Perkins 2.7L 3-cyl diesel | |
 Engine details ... |
| CaseIH C50 Transmissions | |
| 8-speed | |
| 16-speed partial power shift | |
| 16-speed creeper | |
 Transmission details ... |
| CaseIH C50 Power | |
| Engine (gross) | 53 hp 39.5 kW |
| Engine (net) | 48 hp 35.8 kW |
| PTO (claimed) | 40 hp 29.8 kW |
| Drawbar (tested) | 35.4 hp 26.4 kW |
| PTO (tested) | 42.5 hp 31.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Two-post ROPS with straddle platform. | |

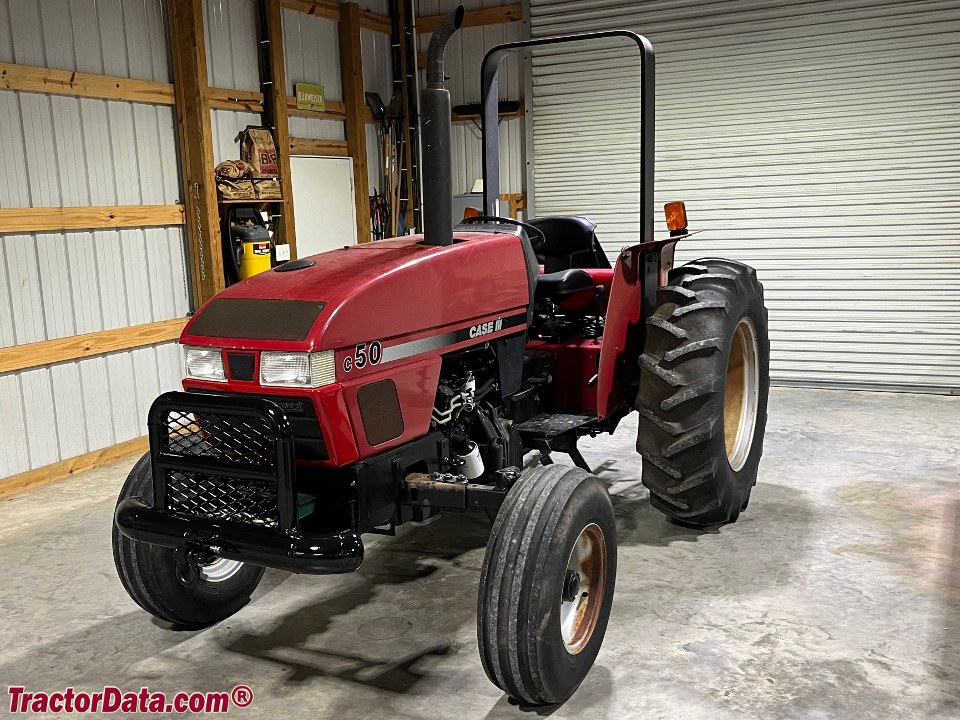

| Photos | |
 | |
 CaseIH C50 photos... | |
| Capacity | |
| Fuel | 20 gal 75.7 L |
| 2WD Hydraulic system | 9 gal 34.1 L |
| 4WD Hydraulic system | 9.7 gal 36.7 L |
| Hydraulics | |
| Type | open center |
| 2WD Capacity | 9 gal 34.1 L |
| 4WD Capacity | 9.7 gal 36.7 L |
| Pressure | 2500 psi 172.4 bar |
| Valves | 0 to 3 |
| Pump flow | 12.7 gpm 48.1 lpm |
| Total flow | 15.7 gpm 59.4 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | mechanical draft sensing |
| Rear lift | 3665 lbs 1662 kg |
| 5097 lbsOptOptional 2311 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540 |
| 540/1000 *Optional dual shaft | |
| Dimensions & Tires | |
| 2WD Wheelbase | 80.9 inches 205 cm |
| 4WD Wheelbase | 83.3 inches 211 cm |
| Weight | 5357 to 7595 pounds |
| Front tire | 7.50-16 |
| Rear tire | 14.9-28 |
 Full dimensions and tires ... | |
| CaseIH C50 attachments | |
| front-end loader | |
 Attachment details ... |
| C50 Serial Numbers | |
| Location: | Near the tractor steering column on right side. |
| 1998 | JJE1000056 |
| 1999 | JJE1008492 |
| 2000 | JJE1013490 |
| 2001 | JJE1017672 |
| 2002 | JJE1019985 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 65 |
| Battery CCA | 650 |
| 810 (optional) | |
| Battery volts | 12 |
| References | |
 | |
| CX Series Tractors published in 1997, by CaseIH |
