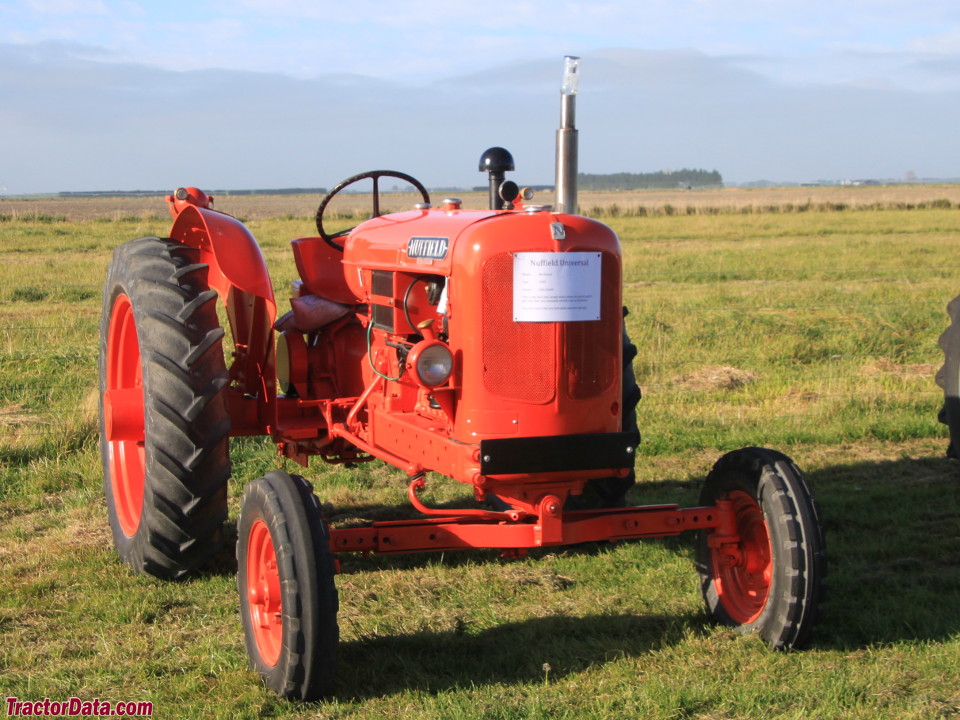

Nuffield Universal M4
|
|
| Production | |
| Manufacturer | Nuffield |
| Row-Crop tractor | |
| Built in Birmingham, England | |
| Nuffield M4 Engine | |
| Morris 3.8L 4-cyl tvo | |
| Fuel tank | 19.2 gal 72.7 L |
| Aux. fuel | 7.2 gal 27.3 L |
 Engine details ... | |
| Nuffield M4 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Nuffield M4 Power | |
| Engine | 38 hp 28.3 kW |
| Drawbar (claimed) | 25.4 hp 18.9 kW |
| Belt (claimed) | 32.5 hp 24.2 kW |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. |
| Photos | |
 | |
 Nuffield M4 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 1000 psi 69.0 bar |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 3700 lbs 1678 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 527@1400 |
| Dimensions & Tires | |
| Wheelbase | 78 inches 198 cm |
| Weight | 4886 lbs 2216 kg |
| Front tire | 6.00-19 |
| Rear tire | 11.00-36 |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 10.25 inches 26 cm |
| RPM | 1039 |
| Speed | 2902 ft/min 884.53 meters/min |
| References | |
 | |
| The Nuffield Universal Tractor published in 1949 |
