Leyland 154
|
|
| Production | |
| Manufacturer | Leyland |
| Utility tractor | |
| Original price was $8,300 in 1984 | |
| Leyland 154 Engines | |
| BMC 1.5L 4-cyl diesel | |
| BMC 1.6L 4-cyl gasoline | |
| Fuel tank | 8.4 gal 31.8 L |
 Engine details ... | |
| Leyland 154 Transmission | |
| 9-speed constant mesh | |
 Transmission details ... |
| Leyland 154 Power | |
| Engine | 28 hp 20.9 kW |
| PTO (claimed) | 24 hp 17.9 kW |
| Mechanical | |
| Two-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Manual steering | |
| Disc brakes | |
| Open operator station. | |

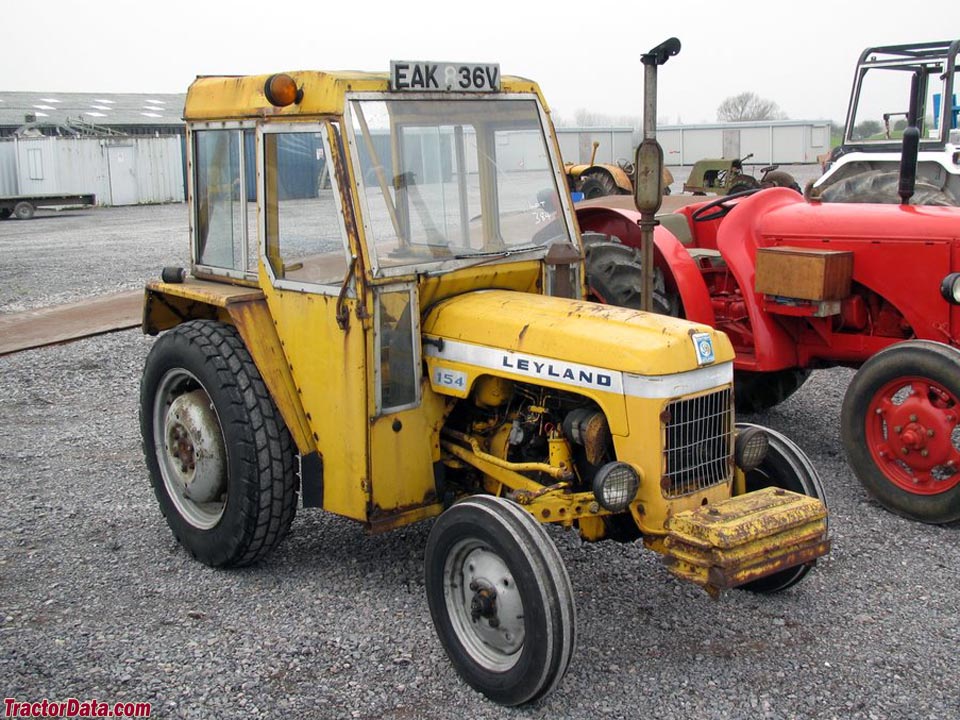

| Photos | |
 | |
 Leyland 154 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2000 psi 137.9 bar |
| Pump flow | 3.8 gpm 14.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 1000 lbs 453 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@2260 |
| 1000@2440 | |
| Dimensions & Tires | |
| Wheelbase | 67.7 inches 171 cm |
| Weight | 2325 lbs 1054 kg |
| Front tire | 5.00-15 |
| Rear tire | 11.2/10-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging amps | 34 |
| References | |
 | |
| 154 published in 1971, by Leyland |
