Steiger Tiger III ST-470

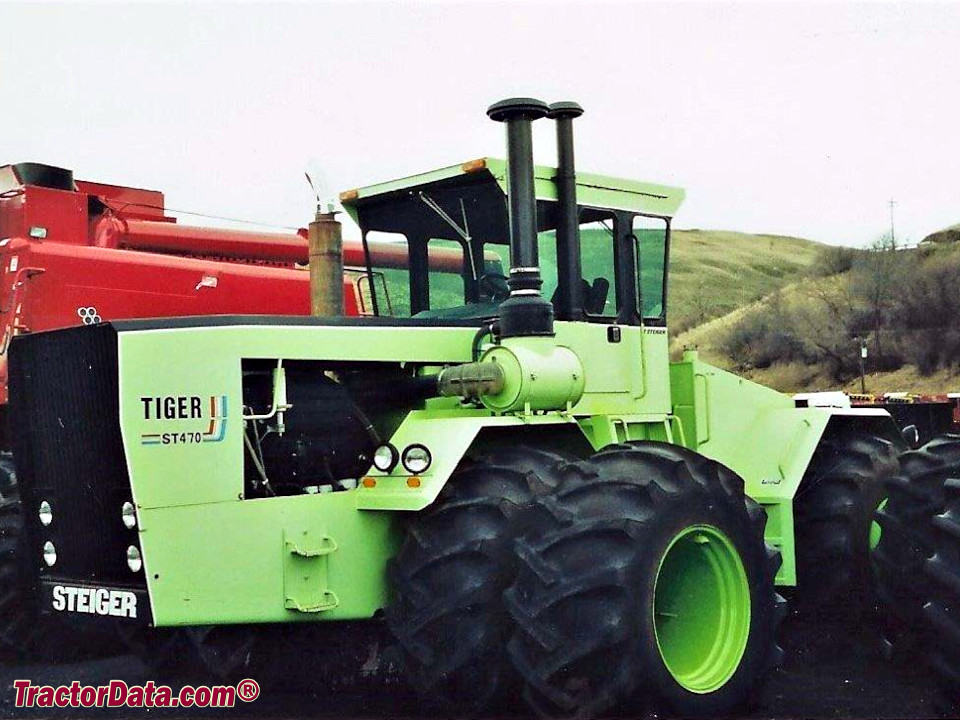

Steiger Tiger III ST-470 tractor photo
1980 - 1982
III Series
Four-wheel Drive (4WD) tractor
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Steiger Tiger III ST-470 Transmission
6-speed full power shift with torque converter
Transmission details ...
Steiger Tiger III ST-470 Power
Engine470 hp
350.5 kW
Drawbar (tested)369.76 hp
275.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Safari Cab standard with air-conditioning.
Capacity
Fuel385 gal
1457.2 L
Hydraulic system48 gal
181.7 L
Hydraulics
Typeopen center
Capacity48 gal
181.7 L
Pressure2250 psi
155.1 bar
Valves5
Pump flow38 gpm
143.8 lpm
SCV flow12 gpm*Minimum
45.4 lpm
 25 gpm*Maximum
94.6 lpm
Dimensions & Tires
Wheelbase150 inches
381 cm
Weight45360 lbs
20575 kg
Front tire30.5x32
Rear tire30.5x32
Full dimensions and tires ...
Tiger III ST-470 Serial Numbers
1980130-00174
1981130-00209
1982130-01501

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps90
Batteries4
Battery CCA625
Battery volts12
