Steiger Turbo Tiger

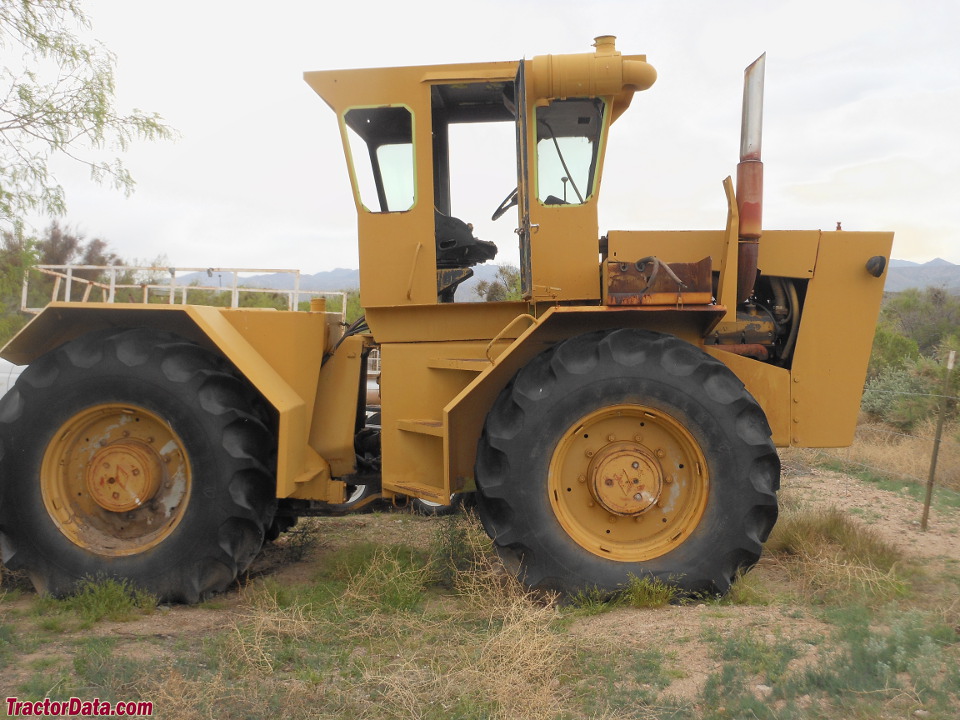

Steiger Turbo Tiger tractor photo
1973 - 1974
I Series
Four-wheel Drive (4WD) tractor
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $39,000 in 1974
Steiger Turbo Tiger Power
Engine320 hp
238.6 kW
Drawbar (claimed)235 hp
175.2 kW
PTO (claimed)256 hp
190.9 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Steeringhydraulic articulated power
Climatized Cab standard with available air-conditioning.
Capacity
Fuel207 gal
783.5 L
Hydraulic system38 gal
143.8 L
Hydraulics
Typeopen center
Capacity38 gal
143.8 L
Pressure2000 psi
137.9 bar
Pump flow25 gpm
94.6 lpm
Dimensions & Tires
Wheelbase121.3 inches
308 cm
Weight21000 to 26000 pounds
Front tire30.5-32
Rear tire30.5-32
Full dimensions and tires ...
Turbo Tiger Serial Numbers
197330002
197430063

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps62
Charging volts12
Batteries2
Battery volts12
References
Turbo Tiger references literature
Operator's Manual Cougar - Tiger (GA 1003R) published in 1975
Steiger Identification Guide: 1969-1998 published by Case IH
Turbo Tiger published in 1973, by Steiger
