Steiger 2200
| | 1963 - 1969 |
| Barn Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
1700
2200
3300
195.0hp
238.0hp
328.0hp
| Production |
| Manufacturer | Steiger
|
| Four-wheel Drive (4WD) tractor |
| Built in Red Lake Falls, Minnesota, USA |
| Steiger 2200 Power |
| Engine | 238 hp
177.5 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Articulated power steering |
| Drum brakes |
| Open operator station. Cab available. |
| Capacity |
| Fuel | 134 gal
507.2 L
|
| Hydraulic system | 54 gal
204.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 54 gal
204.4 L
|
| Valves | 2
|
| Total flow | 40 gpm
151.4 lpm
|
| References |
 |
| Red 4WD Tractors: 1957-2017 by Lee Klancher |
| Red Book 1965 published by Implement & Tractor |
| Red Book 1967 published by Implement & Tractor |
| Red Book 1968 published by Implement & Tractor |
| Red Book 1969 published by Implement & Tractor |
| Ultimate Tractor Power: Articulated Tractors of the World, Volume 2 by Peter Simpson* |
| Steiger Identification Guide: 1969-1998 published by Case IH |
| All-Wheel Power published in 1966, by Steiger |
| All-Wheel Drive Agricultural Tractors published in 1968, by Steiger |
| Extra Heavy-Duty All-Wheel Drive Agricultural Tractors published in 1969, by Steiger |
| *Publication contains known errors. |
| Page information |
 |
| Copyright 2026 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on December 31, 2025 |
©2000-2026 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

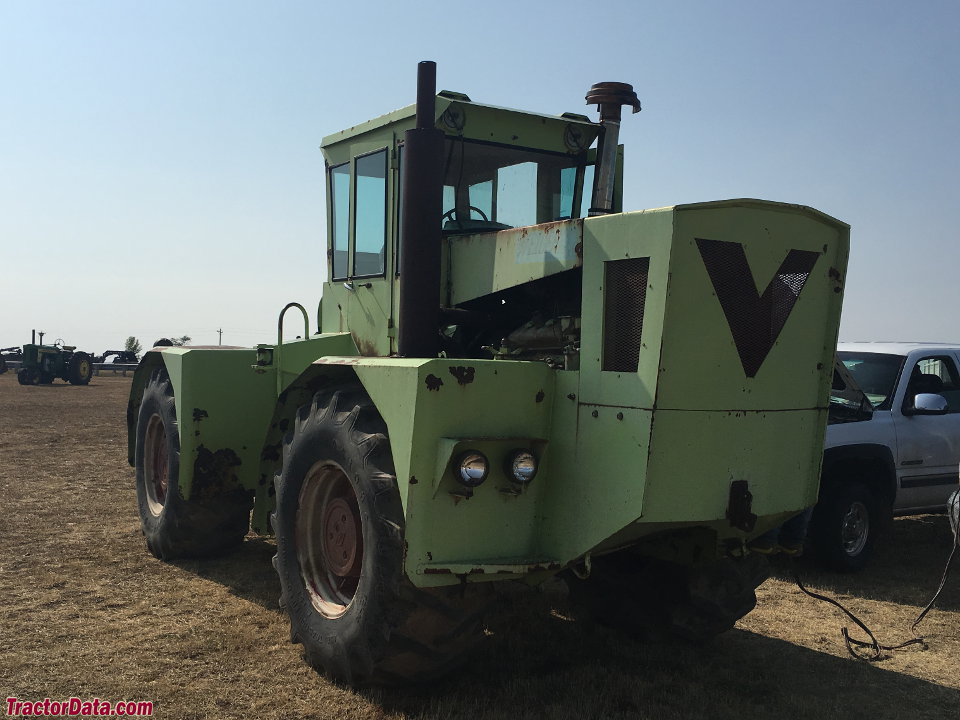

Steiger 2200 photos...
