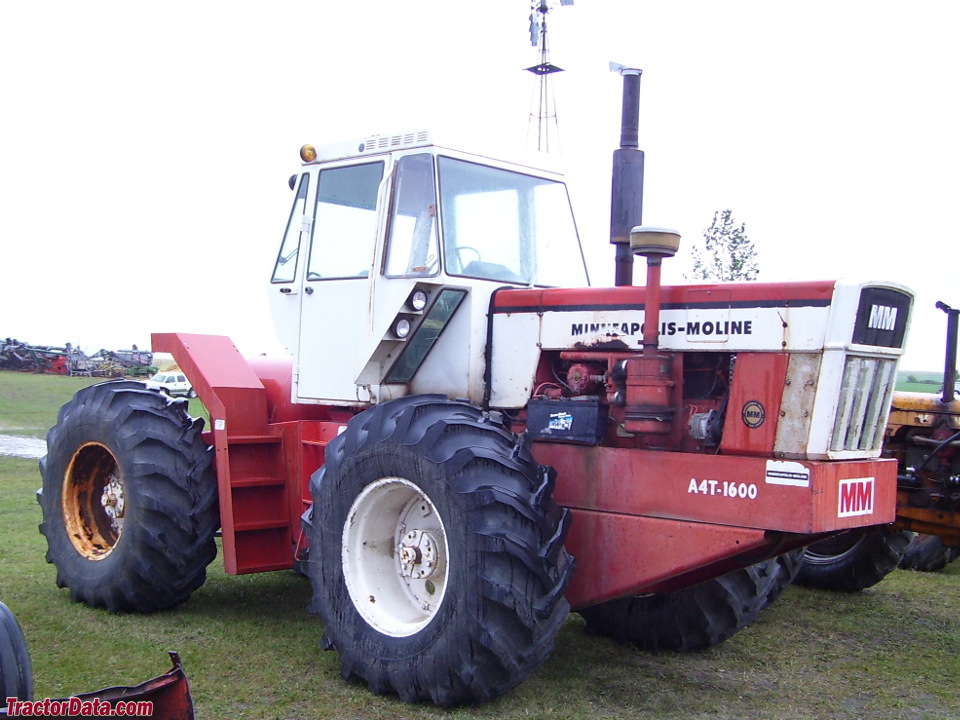

Minneapolis-Moline A4T-1600
|
|
| Production | |
| Manufacturer | Minneapolis-Moline (a part of White) |
| Four-wheel Drive (4WD) tractor | |
| Built in Minneapolis, Minnesota, USA | |
| Minneapolis-Moline A4T-1600 Engines | |
| Minneapolis-Moline 9.6L 6-cyl diesel | |
| Minneapolis-Moline 8.3L 6-cyl LP gas | |
 Engine details ... |
| Minneapolis-Moline A4T-1600 Power | |
| Engine | 169 hp 126.0 kW |
| Drawbar (claimed) | 123 hp 91.7 kW |
| PTO (claimed) | 143 hp 106.6 kW |
| Drawbar (tested) | 123.3 hp 91.9 kW |
| PTO (tested) | 143.27 hp 106.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic dry disc brakes | |
| Open operator station. Cab optional with heat. | |
| Capacity | |
| Diesel Fuel | 100 gal 378.5 L |
| LP-gas Fuel | 88 gal 333.1 L |
| Hydraulic system | 8 gal 30.3 L |
| Hydraulics | |
| Type | open center |
| closed center OptOptional | |
| Capacity | 8 gal 30.3 L |
| Pressure | 1750 psi (open) 120.7 bar |
| 2000 psi (closed) 137.9 bar | |
| Valves | 2 or 3 |
| Pump flow | 17 gpm (open) 64.3 lpm |
| 20 gpm (closed) 75.7 lpm | |
| Tractor hitch | |
| Rear Type | III/II |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 |
| Engine RPM | 1000@1800 |
| Dimensions & Tires | |
| Wheelbase | 120 inches 304 cm |
| Weight | 19850 lbs 9003 kg |
| Front tire | 18.4-34 |
| Rear tire | 18.4-34 |
 Full dimensions and tires ... | |
| A4T-1600 Serial Numbers | |
| 1970 | 45600001 |
| 1971 | 45600188 |
| 1972 | 45600701 |
| Final | 45601190 |
| 1970 | 45700001 (LP-gas) |
| 1971 | 45700127 (LP-gas) |
| 1972 | 45700198 (LP-gas) |
| Final | 45700257 (LP-gas) |
FAQ: How to read a serial number table. | |
| References | |
 | |
| A4T Plainsman published in 1970, by White |
