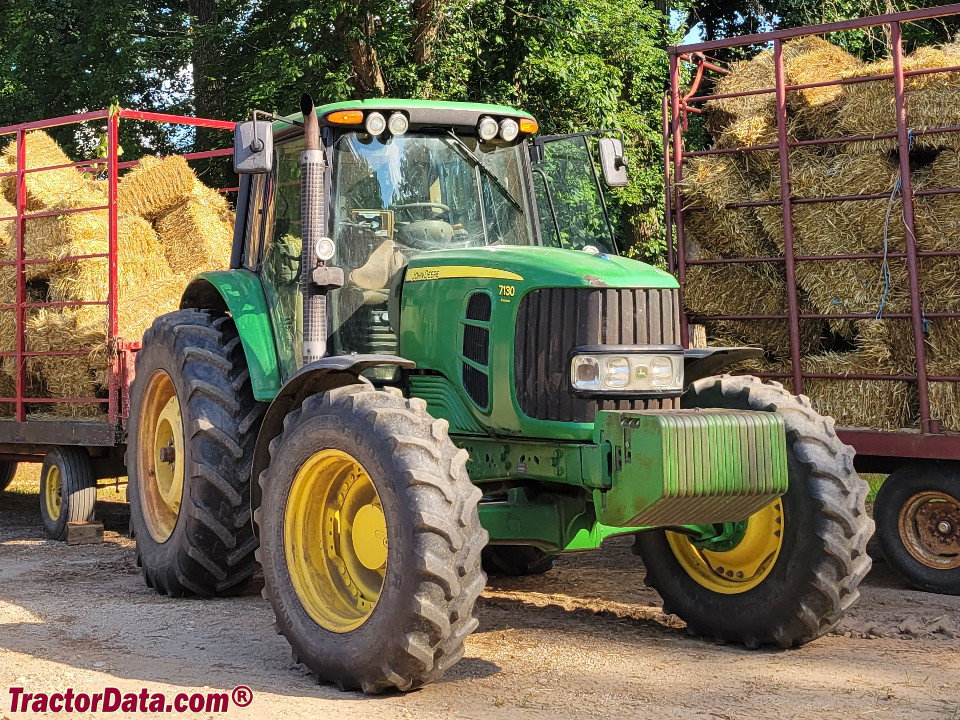

John Deere 7130 Premium
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| Variants | |
| 7130 | base tractor |
| 7130 Premium | deluxe tractor |
| John Deere 7130 Premium Engines | |
| John Deere 6.8L 6-cyl diesel | |
| John Deere 4.5L 4-cyl diesel | |
 Engine details ... |
| John Deere 7130 Premium Transmissions | |
| 16-speed partial power shift | |
| 24-speed partial power shift | |
| infinitely variable transmission | |
| 28-speed partial power shift | |
 Transmission details ... |
| John Deere 7130 Premium Power | |
| Engine (gross) | 121 hp 90.2 kW |
| PTO (claimed) | 100 hp 74.6 kW |
| Drawbar (tested) | 94.79 hp 70.7 kW |
| PTO (tested) | 117.50 hp 87.6 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension. | |
| Capacity | |
| Fuel | 54.7 gal 207.0 L |
| Hydraulic system | 13.7 gal 51.9 L |
| 15.9 gal (IVT) 60.2 L | |
| Hydraulics | |
| Type | closed center pressure and flow compensated (PFC) |
| Capacity | 13.7 gal 51.9 L |
| 15.9 gal (IVT) 60.2 L | |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | 2 to 4 |
| Pump flow | 29 gpm 109.8 lpm |
| Tractor hitch | |
| Rear Type | 2 |
| 2N/2 (optional) | |
| Control | electronic lower link |
| Rear lift (at 24"/610mm) | 5,110 lbs 2317 kg |
| 8,262 lbs (optional) 3747 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear RPM | 540/1000 |
| 540/540E/1000 (optional) | |
| Engine RPM | 540@2143 540E@1684 1000@2208 |
| Dimensions & Tires | |
| Wheelbase | 112.8 inches (2WD) 286 cm |
| 104.3 inches (4WD) 264 cm | |
 Full dimensions and tires ... | |
| 7130 Premium Serial Numbers | |
| Location: | Right side of main frame above front axle |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging volts | 14 |
| Battery volts | 12 |
| References | |
 | |
| 6030 and 7030 Series Tractors published in 2007, by John Deere |
