Caterpillar Fifteen



Caterpillar Fifteen tractor photo
1929 - 1933
Agricultural Crawler tractor
Series map:
Ten
Fifteen
15.6hp
22.2hp
Production
ManufacturerCaterpillar
Agricultural Crawler tractor
Original price was $1,100 in 1932
Caterpillar Fifteen Engines
Caterpillar 3.6L 4-cyl gasoline
Caterpillar 2.3L 4-cyl gasoline
Fuel tank23 gal
87.1 L
Engine details ...
Caterpillar Fifteen Transmission
3-speed gear
Transmission details ...
Caterpillar Fifteen Power
Drawbar (claimed)15 hp
11.2 kW
Belt (claimed)20 hp
14.9 kW
Drawbar (tested)21.79 hp
16.2 kW
Belt (tested)24.77 hp
18.5 kW
Performance test details ...
Mechanical
Drivecrawler
Open operator station.
Photos

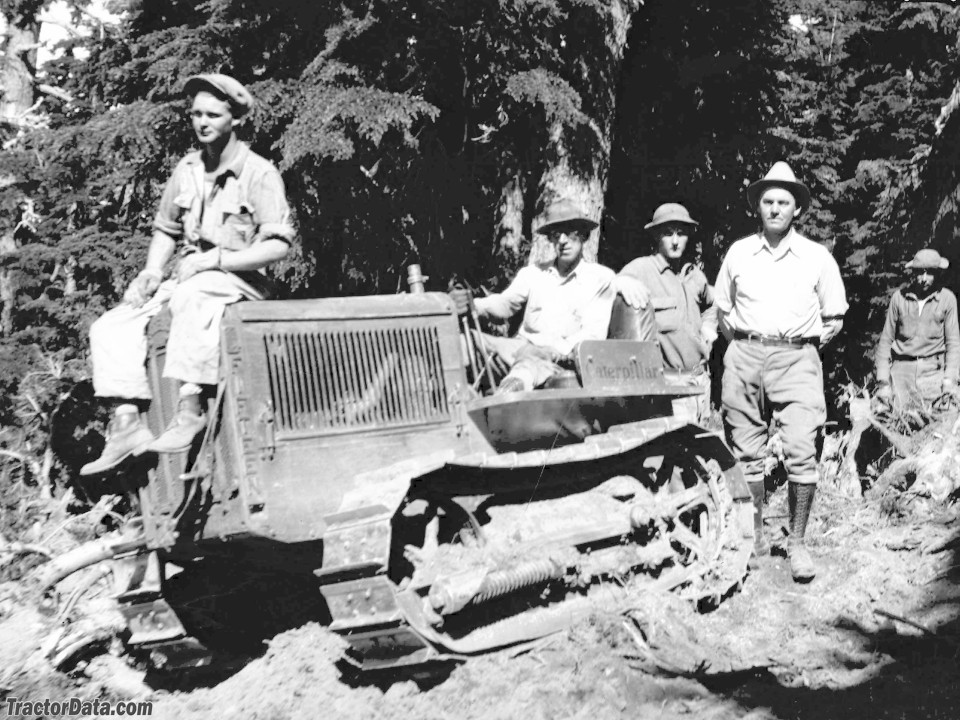

Roy Johnson's C.C.C. Forest Service Road crew at Lookout Mountain, Washington in 1931. Photo is from the Roy T. Johnson Collection, museum catalog number 2020.33.8.
Caterpillar Fifteen photos...
Dimensions & Tracks
Weight4500 to 5500 pounds
10-inch tracks
Full dimensions and tracks ...
Fifteen Serial Numbers
1929PV1
1930PV4024
1931PV7206
1932PV7312
FinalPV7559
19327C1
19337C242
Final7C307
19321D1
19331D61
Final1D60

FAQ: How to read a serial number table.
Belt Pulley
Diameter10.5 inches
26 cm
Width6.5 inches
16 cm
RPM950
Speed2600 ft/min
792.48 meters/min
References
Fifteen references literature
Ten and Fifteen Tractors published in 1929, by Caterpillar
