Challenger 65
| | 1987 - 1990 |
| Agricultural Crawler tractor |
|
Series map:
65
75
270.0hp
325.0hp
| Production |
| Manufacturer | Challenger (a part of Caterpillar)
|
| Agricultural Crawler tractor |
| Challenger 65 Power |
| Engine (gross) | 270 hp
201.3 kW
|
| Engine (net) | 256 hp
190.9 kW
|
| Drawbar (claimed) | 202 hp
150.6 kW
|
| PTO (claimed) | 235 hp
175.2 kW
|
| Drawbar (tested) | 213.73 hp
159.4 kW
|
| PTO (tested) | 237.91 hp
177.4 kW
|
 Performance test details ... |
| Mechanical |
| Drive | crawler
|
| Steering | hydrostatic differential steering
|
| Hydraulic caliper disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 186 gal
704.0 L
|
| Hydraulic system | 16 gal
60.6 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 16 gal
60.6 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 4
|
| Pump flow | 27.2 gpm
103.0 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Rear lift | 12300 lbs
5579 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 105
|
| Batteries | 2
|
| Battery volts | 12
|
| References |
 |

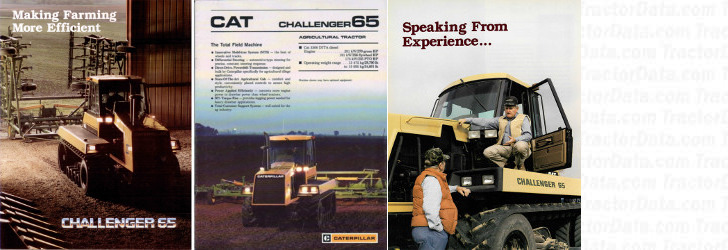

| Make Farming More Efficient published in 1990, by Caterpillar |
| Challenger 65 published in 1987, by Caterpillar |
| Speaking From Experience... published in 1989, by Caterpillar |
