Tractors > Massey Ferguson > 4880

Massey Ferguson 4880



Massey Ferguson 4880 tractor photo
1978 - 1983
4000 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
4840
4880
4900
265.0hp
320.0hp
375.0hp
Production
ManufacturerMassey Ferguson
Four-wheel Drive (4WD) tractor
Original price$110,500 (1983)
Massey Ferguson 4880 Engine
Cummins 14.8L 8-cyl diesel
Engine details ...
Massey Ferguson 4880 Transmission
18-speed partial power shift
Transmission details ...
Massey Ferguson 4880 Power
Engine (net)320 hp
238.6 kW
PTO (claimed)270 hp
201.3 kW
Drawbar (tested)235.40 hp
175.5 kW
PTO (tested)272.81 hp
203.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringarticulated hydrostatic power
Hydraulic caliper brakes
Cab standard with heat and air-conditioning. Optional AM/FM 8-track stereo.
Photos
No photos of the Massey Ferguson 4880 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel190 gal
719.1 L
Steering96 qts
90.9 L
Front axle42 qts
39.7 L
Rear axle84 qts
79.5 L
Hydraulics
Typeopen center
Valves3 to 4
Pump flow16 gpm (transmission)
60.6 lpm
 16 gpm (lift)
60.6 lpm
 28 gpm (auxiliary)
106.0 lpm
Total flow60 gpm
227.1 lpm
Steering cap.96 qts
90.9 L
Tractor hitch
Rear TypeIV
Controlposition control with electronic lower link sensing
Rear lift (at 24"/610mm)13,000 lbs
5896 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Engine RPM1000@2350
Dimensions & Tires
Wheelbase137 inches
347 cm
Weight27000 to 31090 pounds
Front tire23.1-34
Rear tire23.1-34
Full dimensions and tires ...
4880 Serial Numbers
Location:Rear, right-side of cab
19789D001001
19799D001031
19809D002102
19819D002752
19829D003515
19839D003897

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps60
Batteries4
Battery volts12
References
4880 references literature

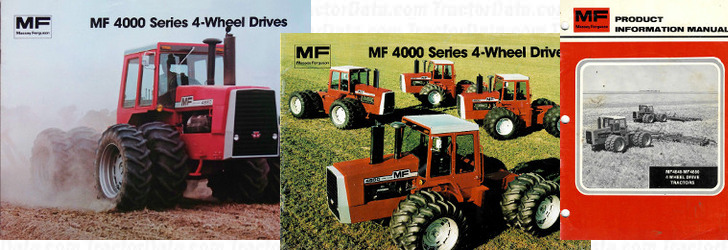

MF 4000 Series 4-Wheel Drives published in 1984, by Massey Ferguson
