Massey Ferguson 4800 Transmission


Massey Ferguson 4800 tractor photo
1978 - 1983
4000 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
4800
4840
225.0hp
265.0hp
Transmission
Typepartial power shift
Gears18 forward and 6 reverse
Clutchwet disc with four 14-inch plates
Oil capacity44 qts
41.6 L
Three gears (1-3) in two ranges (high/low) with three-speed power shift (low/intermediate/high).
Speeds
With 23.1x34 duals.
4800  partial power shift speeds

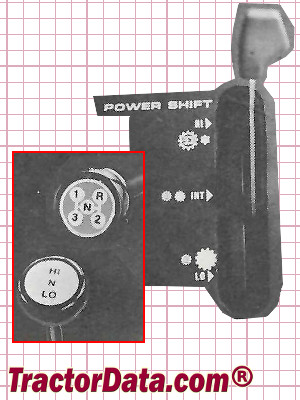

Shift Pattern
Massey Ferguson 4800 transmission controls

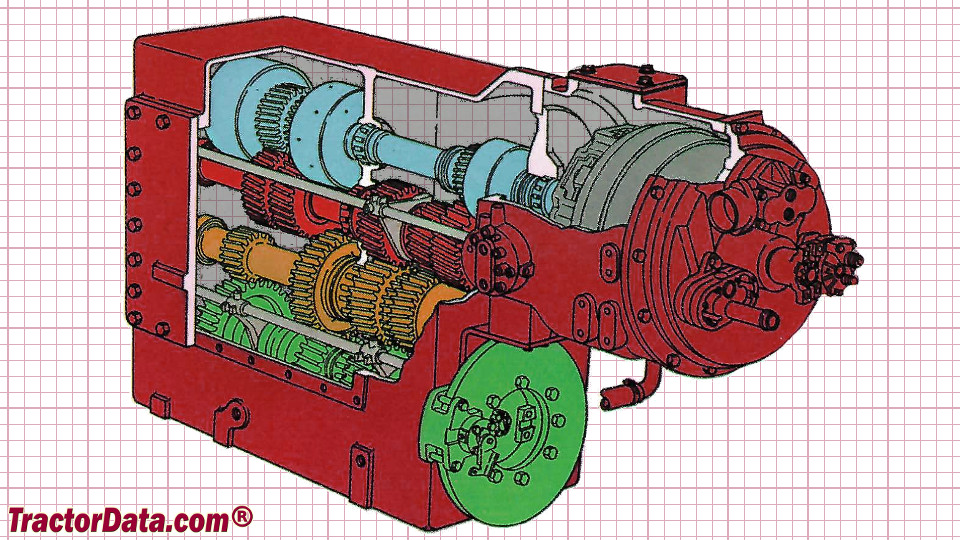

Massey Ferguson 4800 Transmission
Massey Ferguson 4800 transmission image
