| | 1997 - 2001 |
| 4200 Series | | Utility tractor |
|
Series map:
4263
4270
100.0hp
110.0hp
| Transmission options |
| 12-speed power shuttle |
| 24-speed power shuttle with power shift |
| 18-speed two-speed power shift |
| 12-speed partially synchronized |
| Transmission |

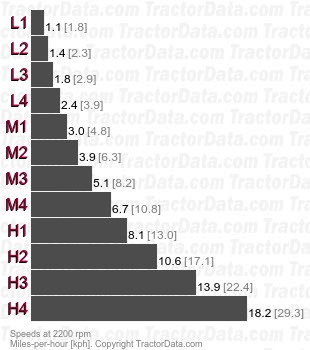

| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Four gears (1-4) in three ranges (low/medium/high) with left-hand power shuttle. |
| Speeds |
|
| Transmission |

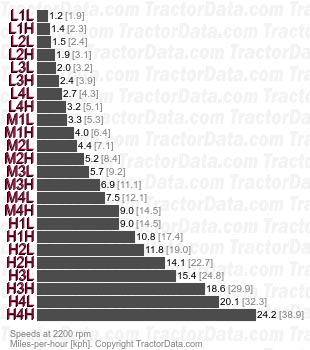

| Type | power shuttle with power shift
|
| Gears | 24 forward and reverse
|
| Four gears (1-4) in three ranges (low/medium/high) with left-hand power shuttle. Two-speed power shift (low/high) for each gear. |
| Speeds |
|
| Transmission |

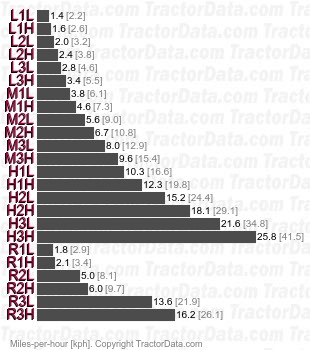

| Transmission | Speedshift
|
| Type | two-speed power shift
|
| Gears | 18 forward and 6 reverse
|
| Three gears (1-3) in three ranges (low, medium, high plus reverse) with a two-speed (low/high) push button power shift. |
| Speeds |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
