| 1997 - 1999 |
4200 Series | Utility tractor |
|
Series map:
4255
4263
4270
95.0hp
100.0hp
110.0hp
Transmission options |
8-speed nonsynchronized gear |
12-speed partially synchronized |
12-speed synchronized shuttle |
Transmission |
Type | nonsynchronized gear
|
Gears | 8 forward and 2 reverse
|
Clutch | dry disc
|
Standard transmission on the ROPS-equipped 4233. |
Transmission |
Type | partially synchronized
|
Gears | 12 forward and 4 reverse
|
Clutch | dry disc
|
Three gears (1-3) plus reverse in two ranges (low/high) two a two-speed synchronized hi-lo shift for each gear. Standard transmission on the cab-equipped 4233. |
Transmission |
Type | synchronized shuttle
|
Gears | 12 forward and reverse
|
Clutch | dry disc
|

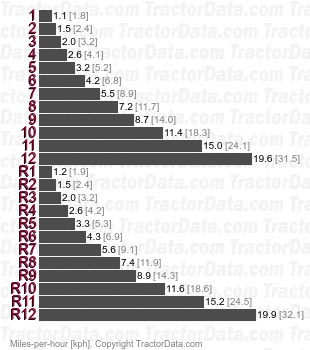

Speeds |
|
