Massey Ferguson 4245


Massey Ferguson 4245 tractor photo
1998 - 2001
4200 Series
Utility tractor
Series map:
4243
4245
4253
85.0hp
85.0hp
95.0hp
Production
ManufacturerMassey Ferguson
Utility tractor
Built in Coventry, England
Original price was $37,500 in 1999
Massey Ferguson 4245 Transmissions
12-speed power shuttle
24-speed power shuttle with power shift
18-speed two-speed power shift
Transmission details ...
Massey Ferguson 4245 Power
Engine (net)85 hp
63.4 kW
PTO (claimed)75 hp
55.9 kW
Drawbar (tested)63.2 hp
47.1 kW
PTO (tested)75.2 hp
56.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesoutboard planetary
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Photos
No photos of the Massey Ferguson 4245 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Cab Fuel33.6 gal
127.2 L
ROPS Fuel34.3 gal
129.8 L
 16.4 gal (cab opt.)
62.1 L
 18.5 gal (ROPS opt.)
70.0 L
 29.1 gal (Hi-Viz)
110.1 L
Hydraulic system13.2 gal
50.0 L
Hydraulics
Typeopen center
Capacity13.2 gal
50.0 L
Pressure3046 psi
210.0 bar
Valves2 to 4
Pump flow17.4 gpm
65.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)4339 lbs
1968 kg
 5260 lbsOptOptional
2385 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1902
 1000@2000
Dimensions & Tires
Wheelbase93 inches
236 cm
Weight6914 to 8287 pounds
Front tire7.5L-15
Rear tire16.9-30
Full dimensions and tires ...
4245 Serial Numbers
1997F01001
1998G01001
1999H01001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps45
Cab Charging amps70
Batteries2
Battery CCA590
Battery volts12
References

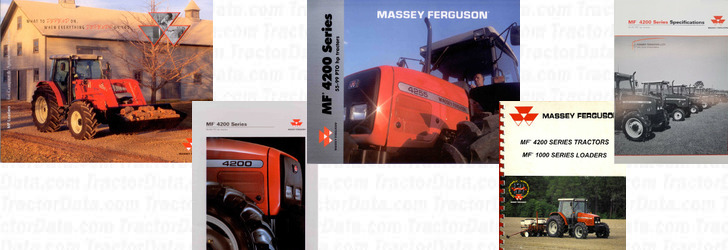

4245 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 4200 Series published in 1997, by Massey Ferguson
MF 4200 Series published in 2000, by Massey Ferguson
MF 4200 Series Tractors - MF 1000 Series Loaders Dealer Launch published in 1997, by Massey Ferguson
MF 4200 Series Specifications published in 1997, by Massey Ferguson
