Tractors > Massey Ferguson > 2640

Massey Ferguson 2640



Massey Ferguson 2640 tractor photo
1980 - 1985
2000 Series
Row-Crop tractor
Series map:
2620
2640
2680
102.0hp
110.0hp
130.0hp
Production
ManufacturerMassey Ferguson
Row-Crop tractor
Built in Beauvais, France
Original price was $38,000 in 1983
Massey Ferguson 2640 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank56.3 gal
213.1 L
Engine details ...
Massey Ferguson 2640 Transmission
16-speed two-speed power shift
Transmission details ...
Massey Ferguson 2640 Power
Engine110 hp
82.0 kW
PTO (claimed)90 hp
67.1 kW
Drawbar (tested)74.77 hp
55.8 kW
PTO (tested)90.95 hp
67.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockhydraulic
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

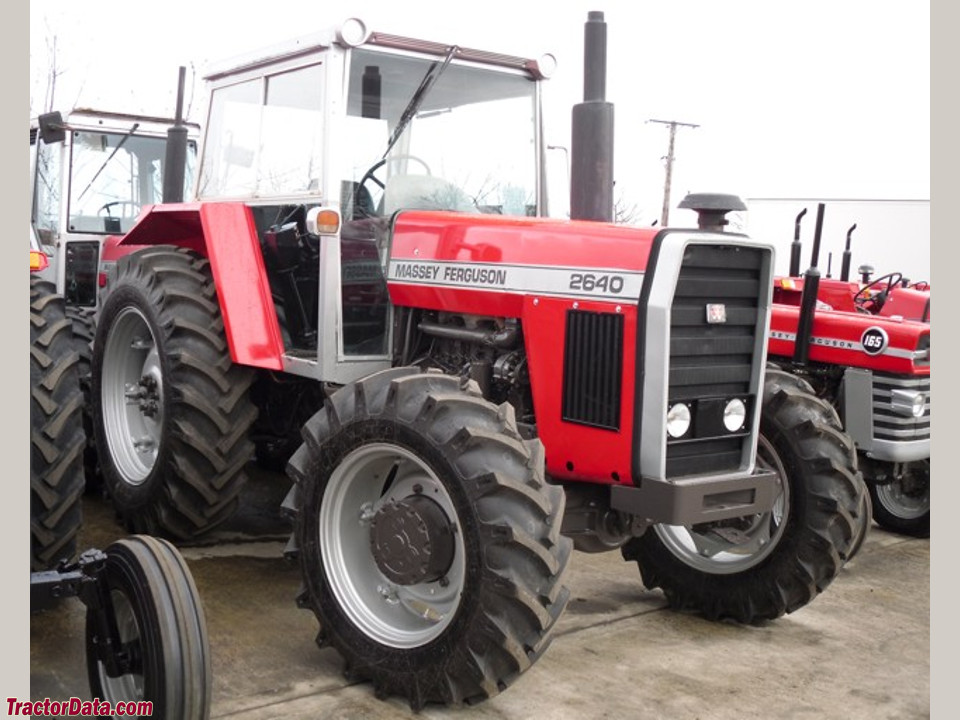

Photos
Massey Ferguson 2640
Massey Ferguson 2640 photos...
Hydraulics
Typeopen center
Valves2 or 3
Pump flow15 gpm
56.8 lpm
Total flow34.8 gpm
131.7 lpm
Steering flow14.5 gpm
54.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)9921 lbs
4500 kg
Rear lift (at 24"/610mm)7600 lbs
3447 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic disc
Rear PTO Type540 (1.375)
 1000 (1.375)
Engine RPM540@1900
 1000@2090
Dimensions & Tires
2WD Wheelbase105 inches
266 cm
4WD Wheelbase107.3 inches
272 cm
Weight11200 to 12600 pounds
Front tire10.00-16
2WD Rear tire18.4-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Batteries2
Battery volts12
Battery AH85
References
2640 references literature
2640 published in 1982, by Massey Ferguson
Product Information Manual MF 2640 Tractor published in 1982, by Massey Ferguson
