| | 1973 - 1978 |
| Row-Crop tractor |
|
Series map:
1105
1135
1155
123.3hp*
134.4hp*
155.6hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed two-speed power shift |
| 8-speed gear |
| Transmission |
| Transmission | Multi-Power
|
| Type | two-speed power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift. |

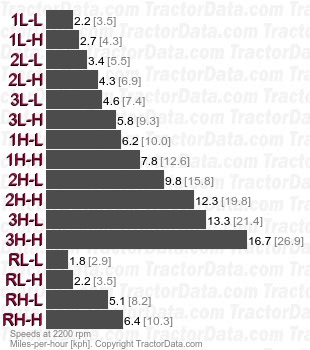

| Speeds |
| With 18.4x38 rear tires. |
|

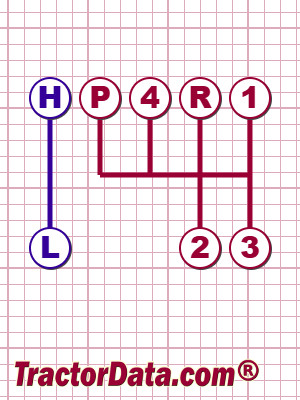

| Shift Pattern |
 |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Four gears (1-4), plus reverse (R) in two ranges (low-high). |
| Shift Pattern |
 |
