Massey Ferguson 1135 Tests

Massey Ferguson 1135 tractor photo
1973 - 1978
Row-Crop tractor
Nebraska Tractor Test 1135

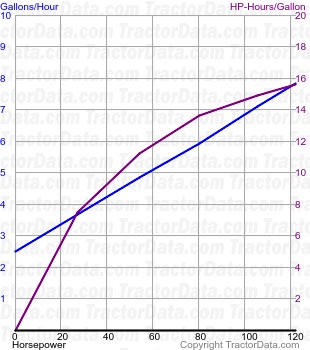

1135 fuel use from test 1135
Nebraska Tractor Test 1135
Diesel 12-speed 2WD
June 4 - 15, 1973
Link: Nebraska Tractor Test 1135 file
PTO performance
Power at rated engine speed:120.84 hp
90.1 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Power at rated PTO speed:118.47 hp
88.3 kW
Fuel use:7.3 gal/hour
27.6 l/hour
Drawbar performance
Max power:102.44 hp
76.4 kW
Fuel use:7.7 gal/hour
29.1 l/hour
Gear 3L-Low used for power test.
Max pull:13,955 lbs
6329 kg
Gear 1L-Hi used for pull test.
