Massey Ferguson 390 Engine


Massey Ferguson 390 tractor photo
1987 - 1997
Model year
300 Series
Utility tractor
290
Series:383390390T
Engine Detail
Perkins A4.248
diesel
4-cylinder
liquid-cooled
Displacement:248 ci
4.1 L
Bore/Stroke:3.975x5.00 inches
101 x 127 mm
Power:79 hp
58.9 kW
Fuel system:direct injection
Air cleaner:dual dry element
Compression:16:1
Rated RPM:2200
Idle RPM:750-2310
Torque:209 lb-ft
283.4 Nm
Torque RPM:1400
Firing order:1-3-4-2
Starter:electric
Starter volts:12

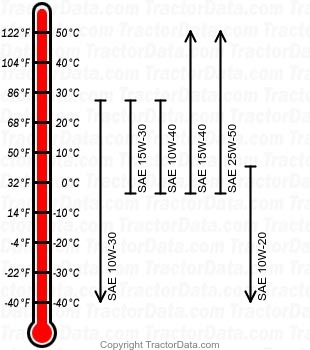

Oil capacity:7.9 qts
7.5 L
Coolant capacity:16 qts
15.1 L
