J.I. Case SO
|
|
| Production | |
| Manufacturer | J.I. Case |
| Orchard/Vineyard tractor | |
| Built in Racine, Wisconsin, USA | |
| J.I. Case SO Engines | |
| J.I. Case 2.5L 4-cyl gasoline | |
| J.I. Case 2.7L 4-cyl gasoline | |
| Fuel tank | 14 gal 53.0 L |
| Aux. fuel | 1.25 gal 4.7 L |
 Engine details ... | |
| J.I. Case SO Transmission | |
| 4-speed gear | |
 Transmission details ... |
| J.I. Case SO Power | |
| Drawbar (claimed) | 16 hp 11.9 kW |
| Belt (claimed) | 21 hp 15.7 kW |
| Plows | 2 (14-inch) |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |

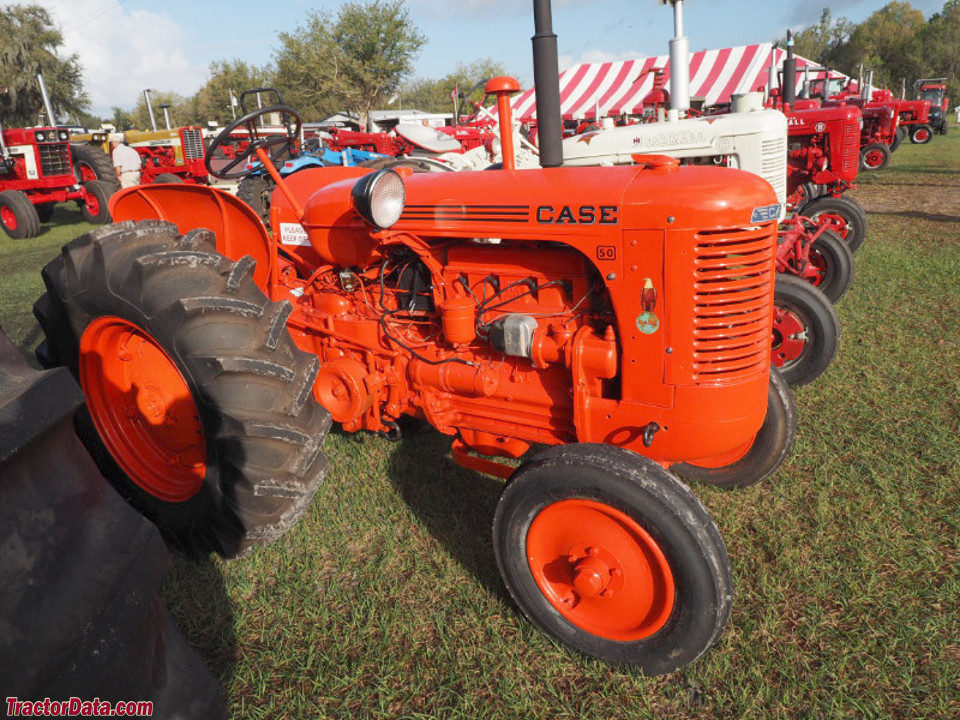

 J.I. Case SO photos... | |
| Hydraulics | |
| Type | open center |
| Power Take-off (PTO) | |
| Rear PTO | continuous |
| live *After 1953 | |
| Clutch | wet disc |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 66 inches 167 cm |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 9.25 inches 23 cm |
| Width | 6.375 inches 16 cm |
| RPM | 1078 |
| Speed | 2600 ft/min 792.48 meters/min |

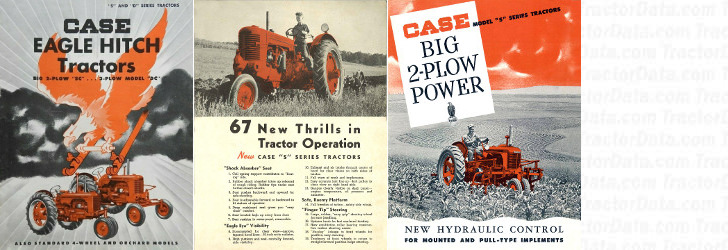

| References | |
 | |
| Case Eagle Hitch Tractors published in 1953, by J.I. Case | |
| New Case "S" Series Tractors published in 1941, by J.I. Case | |
| Model "S" Series Tractors published in 1950, by J.I. Case |
