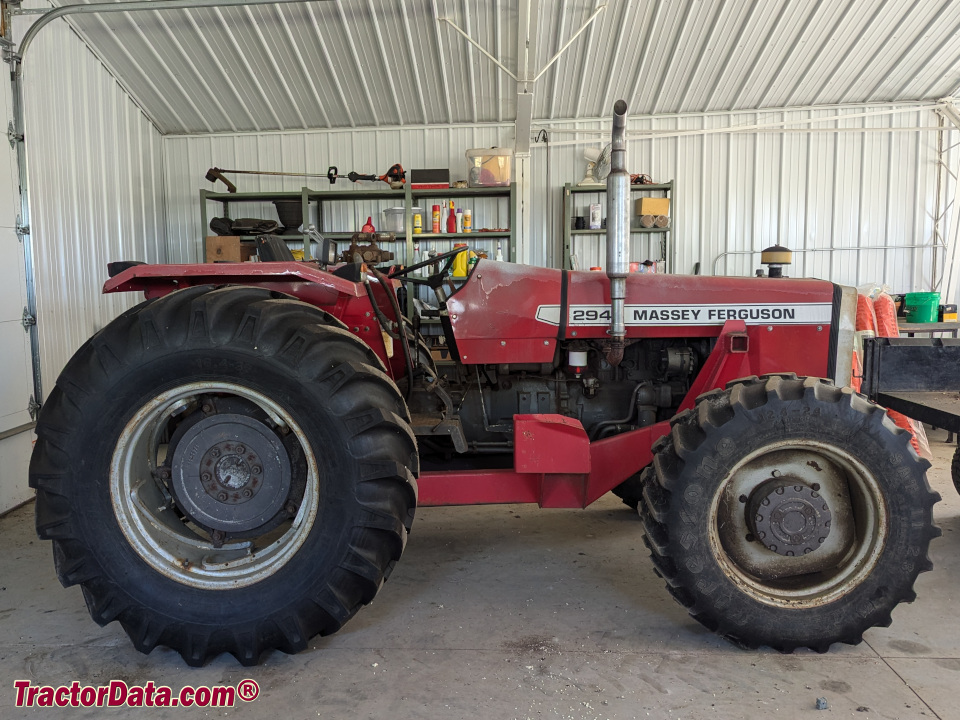

Massey Ferguson 294
Series map:
274
294
61.1hp*
74.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Built in Italy |
| Original price | $27,000 (1987)
|
| Massey Ferguson 294 Power |
| PTO (claimed) | 67 hp
50.0 kW
|
| Drawbar (tested) | 55.23 hp
41.2 kW
|
| PTO (tested) | 67.39 hp
50.3 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Differential lock | pedal-operated
|
| Steering | hydrostatic power
|
| Differential mechanical dry disc brakes |
| Two-post ROPS. |
| Hydraulics |
| Type | open
|
| Valves | 2
|
| Pump flow | 9.4 gpm
35.6 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | draft and position control
|
| Rear lift (at 24"/610mm) | 3,670 lbs
1664 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/ground
|
| Front PTO | direct-drive
|
| Front PTO Type | 2250
|
| 294 Serial Numbers |
| Location: | Plate on the bottom-left side of the tractor's instrument panel.
|
| 1982 | 2235938
|
| 1983 | 2236290
|
| 1984 | 2236511
|
| 1985 | 22300915
|
| 1986 | 22301652
|
| 1987 | 22302505
|
| 1988 | 22303121
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| 294,274,254 published in 1984, by Massey Ferguson |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 9, 2015 |
