Massey Ferguson 25
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Utility tractor | |
| Built in Beauvais, France | |
| Original price was $2,545 in 1965 | |
| The Massey Ferguson 825 is the designation for the version of the model 25 sold in France. | |
| Massey Ferguson 25 Engine | |
| Perkins 1.8L 4-cyl diesel | |
| Fuel tank | 12 gal 45.4 L |
 Engine details ... | |
| Massey Ferguson 25 Transmission | |
| 8-speed gear | |
 Transmission details ... |
| Massey Ferguson 25 Power | |
| Engine | 25 hp 18.6 kW |
| PTO (claimed) | 24 hp 17.9 kW |
| Plows | 2 |
| Drawbar (tested) | 20.06 hp 15.0 kW |
| PTO (tested) | 24.39 hp 18.2 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Differential lock | mechanical rear |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. | |

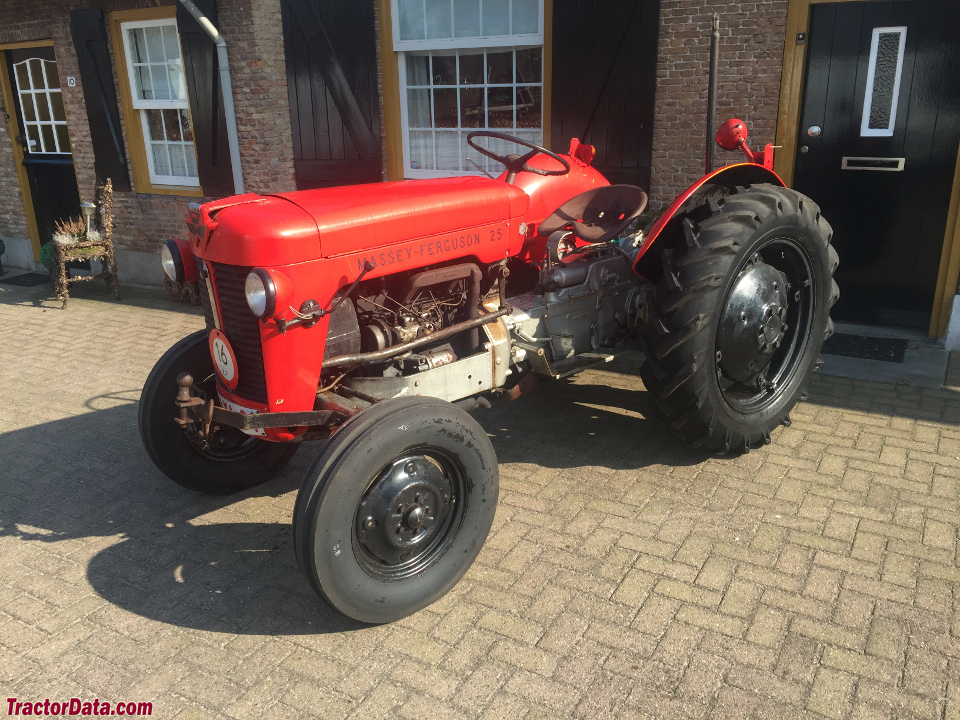

| Photos | |
 | |
 Massey Ferguson 25 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2000 psi 137.9 bar |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO | live *Two-stage foot clutch. |
| Clutch | 228.6mm dry disc |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1890 |
| Dimensions & Tires | |
| Wheelbase | 72 inches 182 cm |
| Weight | 2600 to 3115 pounds |
| Front tire | 5.50-16 |
| Rear tire | 10-28 |
 Full dimensions and tires ... | |
| 25 Serial Numbers | |
| Location: | Serial number plate on tractor's dashboard. |
| References | |
 | |
| MF 25 Diesel Tractor published in 1963, by Massey Ferguson | |
| Installation & Operation of Basic & Auxiliary Hydraulic Systems (690 562 M2) published in 1968 |
