Tractors > Oliver > 66 Row-Crop

Oliver 66 Row-Crop



Oliver 66 Row-Crop tractor photo
1949 - 1954
Fleetline Series
Row-Crop tractor
Series map:
66
77
27.7hp*
37.8hp*
*Estimated engine power for comparison only.
Production
ManufacturerOliver
Row-Crop tractor
Built in Charles City, Iowa, USA
Original price$2,000 (1954)
Variants
66Rrow-crop
66Sstandard
Oliver 66 Engines
Oliver-Waukesha 2.1L 4-cyl gasoline
Oliver-Waukesha 2.1L 4-cyl diesel
Fuel tank10 gal
37.9 L
Engine details ...
Oliver 66 Transmission
6-speed unsynchronized gear
Transmission details ...
Oliver 66 Power
Plows2 (14-inch)
Drawbar (tested)22.50 hp
16.8 kW
Belt (tested)25.03 hp
18.7 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Contracting band brakes
Open operator station.
Photos

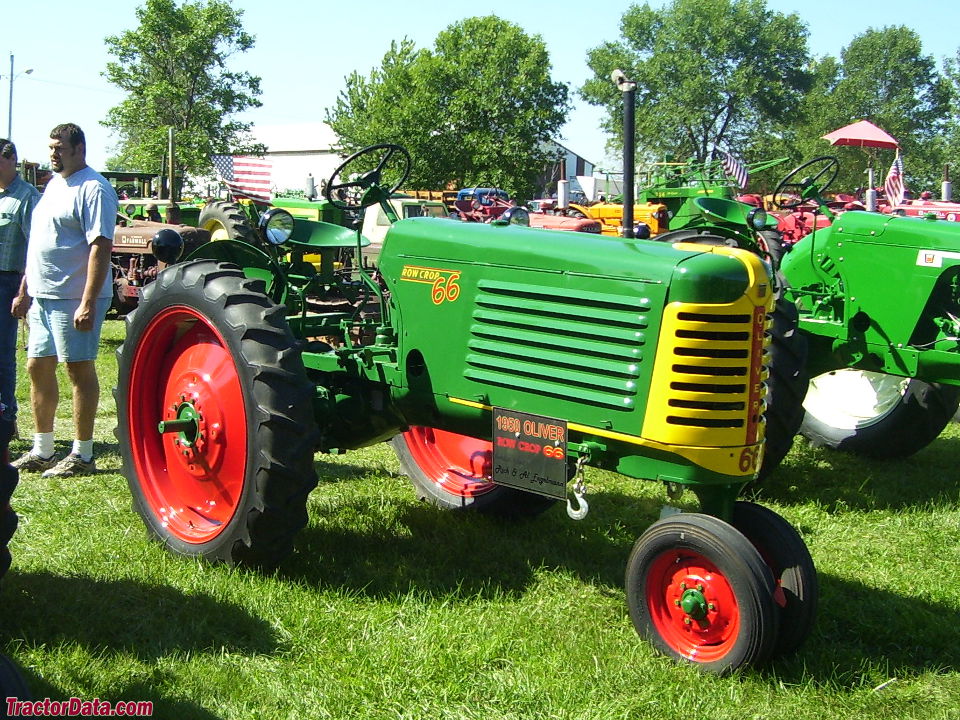

1950 Oliver 66 Row-Crop
Oliver 66 photos...
Tractor hitch
TypeOliver Hydra-Lift
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Wheelbase86.75 inches
220 cm
Weight3193 to 3795 pounds
Front tire5.00-15
Rear tire8-38
Full dimensions and tires ...
66 Serial Numbers
1949420001
1950423101
1951426011
1952429771
19533503990
19544500309
Final4503563

FAQ: How to read a serial number table.
Belt Pulley
Diameter11.875 inches
30 cm
Width7.25 inches
18 cm
RPM987
Speed3,065 ft/min
934.21 meters/min
References
66 Row-Crop references literature
Diesel Tractors - 66, 77, 88 published in 1952, by Oliver
