Cockshutt 570

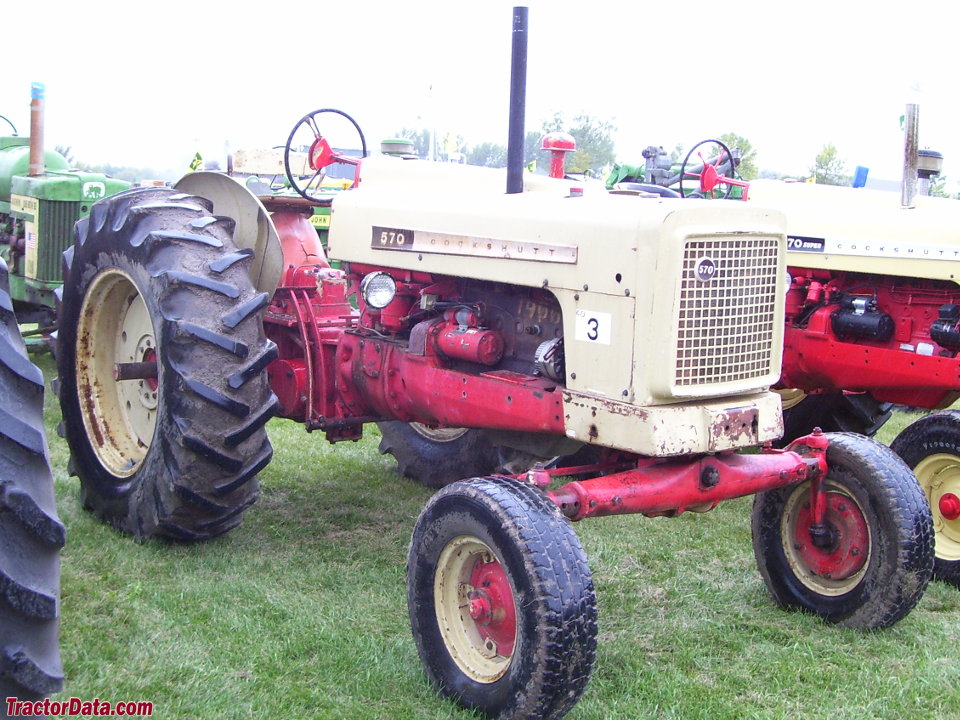

Cockshutt 570 tractor photo
1958 - 1960
500 Series
Series map:
560
570
54.4hp*
67.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerCockshutt
Built in Brantford, Ontario, Canada
Original price was $5,500 in 1960
Cockshutt 570 Engines
Hercules 4.9L 6-cyl diesel
Hercules 4.9L 6-cyl gasoline
Fuel tank30 gal
113.6 L
Engine details ...
Cockshutt 570 Transmission
6-speed unsynchronized gear
Transmission details ...
Cockshutt 570 Power
Plows5
Drawbar (tested)52.25 hp
39.0 kW
Belt (tested)60.84 hp
45.4 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower assist
Mechanical disc brakes
Open operator station.
Photos
Cockshutt 570
Cockshutt 570 photos...
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Tricycle Wheelbase90.75 inches
230 cm
Row-crop Wheelbase90.75 inches
230 cm
Standard Wheelbase87.75 inches
222 cm
Weight7000 lbs
3175 kg
Front tire7.50x16
Rear tire13.6/12x38
Full dimensions and tires ...
570 Serial Numbers
1958DM1001
1959DN5001
1960DO7001

FAQ: How to read a serial number table.
References
570 references literature
The New Cockshutt 560 570 Tractors published in 1959
