Ford-New Holland 8560 Engine


Ford-New Holland 8560 tractor photo
1996 - 1999
Series:83608560
TM165
Engine Detail
New Holland Genesis
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:456 ci
7.5 L
Bore/Stroke:4.5x5.0 inches
114 x 127 mm
Compression:17.5:1
Rated RPM:2300
Idle RPM:700-2530
Operating RPM:1500-2300
Torque RPM:1600
Firing order:1-5-3-6-2-4
Starter volts:12
Starter power:4.9 hp
3.7 kW
Coolant capacity:27.5 qts
26.0 L
Intake valve clearance:0.016 inches
0.406 mm (cold)
Exhaust valve clearance:0.018 inches
0.457 mm (cold)
Engine Oil

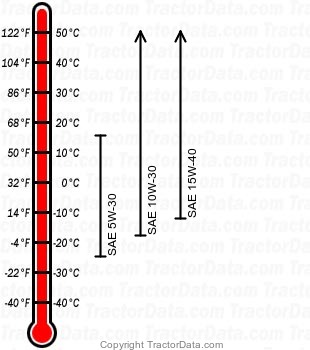

8560 diesel engine oil chart
Oil capacity:20.8 qts
19.7 L
