| | 1990 - 2002 |
| 30 Series | | Utility tractor |
|
Series map:
3430
3930
4630
46.0hp
50.0hp*
60.0hp
Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing. |
| Transmissions overview |

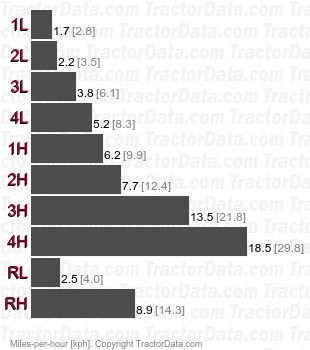

| 8-speed gear |

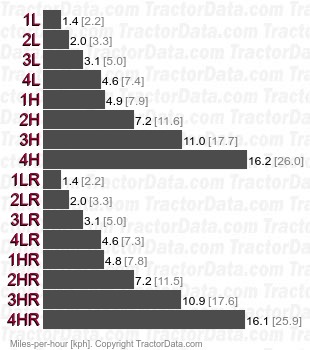

| 8-speed synchronized shuttle |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Speeds |
|
| Transmission |
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Speeds |
|
