New Holland 3415

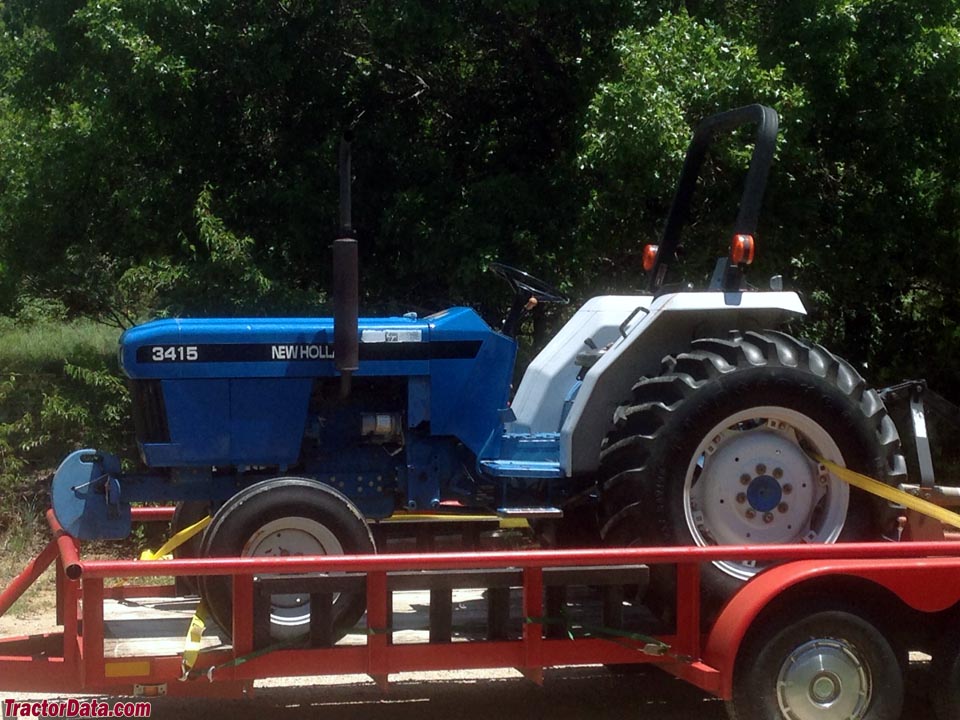

New Holland 3415 tractor photo
1993 - 2003
Compact Utility tractor
Shibaura built
3415
Series:3415

Note: the New Holland model 3415 is the same as the Ford 3415. The following data is from the 3415 listing.
Production
Distributor:New Holland
Manufacturer:Shibaura
Type:Compact Utility tractor
Factory:Japan
Original price:$17,900 (2000 )
New Holland 3415 Power
Engine:44 hp
32.8 kW
PTO (claimed):38 hp
28.3 kW
New Holland 3415 Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank:11.1 gal
42.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Cab:Two-post ROPS.
Transmission:12-speed
Transmission details ...
Hydraulics
Type:open center
Pump flow:6.5 gpm
24.6 lpm
Tractor hitch
Rear Type:I
Rear lift:3,470 lbs
1573 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Dimensions & Tires
Wheelbase:74.8 inches
189 cm
Weight:4,100 lbs
1859 kg
Front tire:6.00-16
Rear tire:13.6-28
Full dimensions and tires ...
3415 Serial Numbers
Location:left side of transmission
1993:UX20001
1994:UX20798
1995:UX21715
1996:UX22323
1997:UX22504
1998:UX22858
1999:UX23290

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
