J.I. Case 900-B
|
|
| Production | |
| Manufacturer | J.I. Case |
| Standard-tread tractor | |
| Built in Racine, Wisconsin, USA | |
| Total built | 5,640 |
| Original price | $6,000 (1960) |
| J.I. Case 900-B Engine | |
| J.I. Case 6.2L 6-cyl diesel | |
 Engine details ... |
| J.I. Case 900-B Transmission | |
| 6-speed gear | |
 Transmission details ... |
| J.I. Case 900-B Power | |
| Plows | 5-6 |
| Drawbar (tested) | 66.21 hp 49.4 kW |
| PTO (tested) | 70.24 hp 52.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | power assist |
| Disc brakes | |
| Open operator station. | |

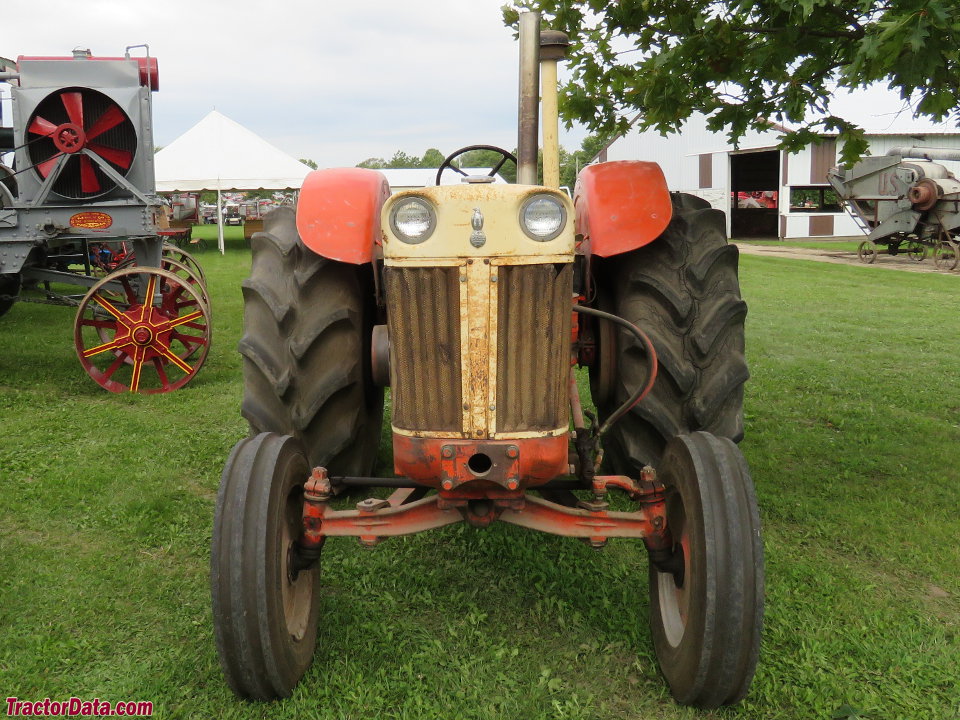

| Photos | |
 | |
 J.I. Case 900-B photos... | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 84 inches 213 cm |
| Weight | 8,500 lbs 3855 kg |
| Front tire | 7.50-18 |
| Rear tire | 15-34 |
 Full dimensions and tires ... | |

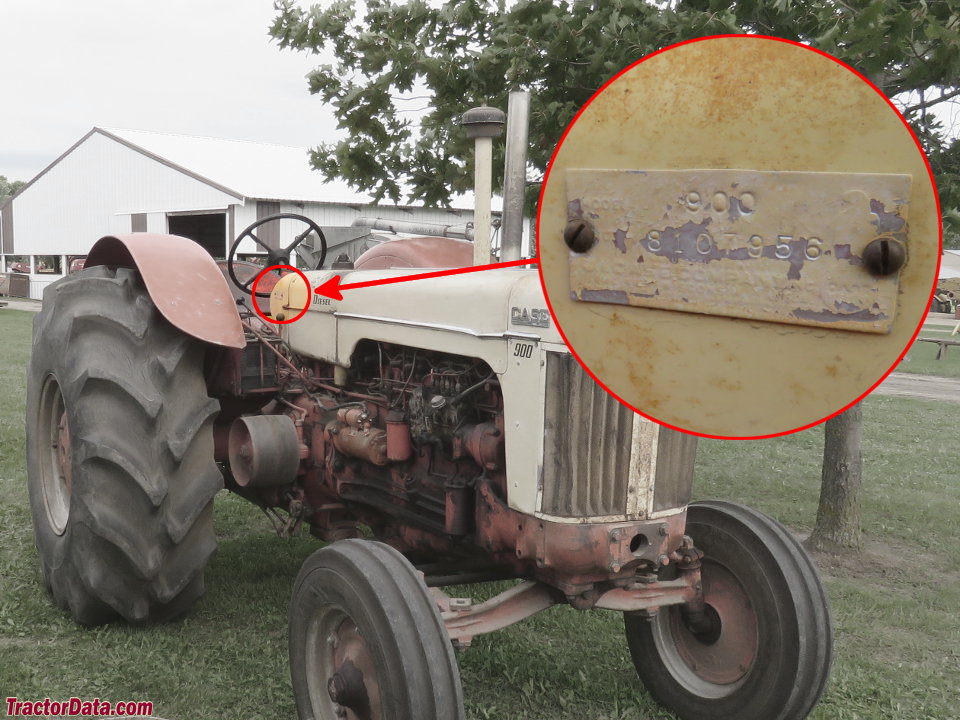

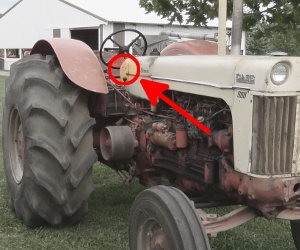

| 900-B Serial Number Location | |
 | |
| Serial number tag on the right side of the Case 900, ahead of the dashboard. |
| 900-B Serial Numbers | |
| 1957 | 8100001 |
| 1958 | 8120001 |
| 1959 | 8140001 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| J.I. Case presents published in 1957 |
