J.I. Case 801-B


J.I. Case 801-B tractor photo
1958 - 1960
800 B Series
Row-Crop tractor
Series map:
801-B
60.0hp
Production
ManufacturerJ.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $5,600 in 1960
Variants
800Bdiesel standard
801Bdiesel row-crop
802Bdiesel Western special
803Bdiesel high-crop
810Bgas standard
811Bgas row-crop
812Bgas Western special
813Bgas high-crop
J.I. Case 801-B Engine
J.I. Case 4.4L 4-cyl diesel
Fuel tank22 gal
83.3 L
Engine details ...
J.I. Case 801-B Power
Belt (claimed)54 hp
40.3 kW
Drawbar (tested)51.38 hp
38.3 kW
Belt (tested)54.42 hp
40.6 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower
Differential mechanical disc brakes
Open operator station.
Tractor hitch
TypeCase Eagle Hitch
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
Dimensions & Tires
Wheelbase101.75 inches (wide front)
258 cm
 92.25 inches (tricycle)
234 cm
Weight6800 lbs
3084 kg
Front tire6.00-16
Rear tire15.5-38
Full dimensions and tires ...
801-B Serial Numbers
801-B Serial Location

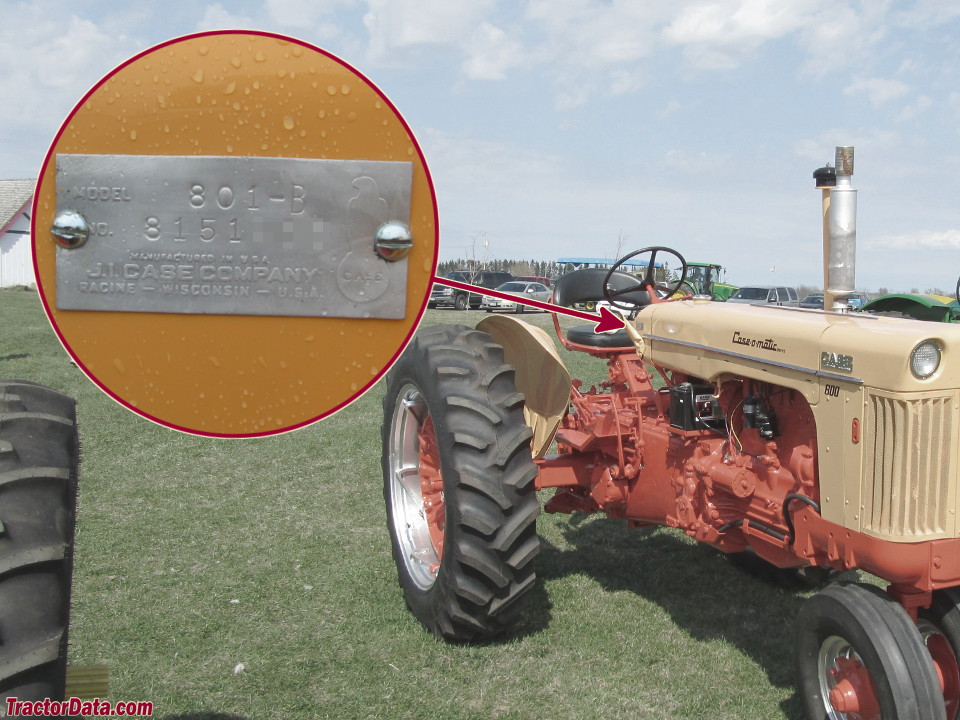

J.I. Case 801-B serial number location
Serial number plate on the right side of the instrument panel.
References
801-B references literature
800 5 Plow Tractor published in 1958, by J.I. Case
J.I. Case presents published in 1957
