J.I. Case 833


J.I. Case 833 tractor photo
1960 - 1969
830 Series
High-Clearance tractor
803-B
Series:833
Production
Manufacturer:J.I. Case
Type:High-Clearance tractor
Variants
830:diesel standard-front
831:diesel row-crop
832:diesel Western Special
833:diesel high-crop
840:gas standard-front
841:gas row-crop
842:gas Western Special
843:gas high-crop
J.I. Case 833 Power
Belt (claimed):66 hp
49.2 kW
Plows:5
J.I. Case 833 Engine
J.I. Case 4.9L 4-cyl diesel
Fuel tank:22 gal
83.3 L
 28 gal
106.0 L (LP-gas)
Engine details ...
Mechanical
Chassis:4x2 2WD
Cab:Open operator station.
Transmissions:8-speed gear
 8-speed torque converter
Transmission details ...
Hydraulics
Type:open center
Tractor hitch
Rear Type:II
Control:Draft-o-matic load/depth control
Type:Case Eagle Hitch
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
833 Serial Numbers

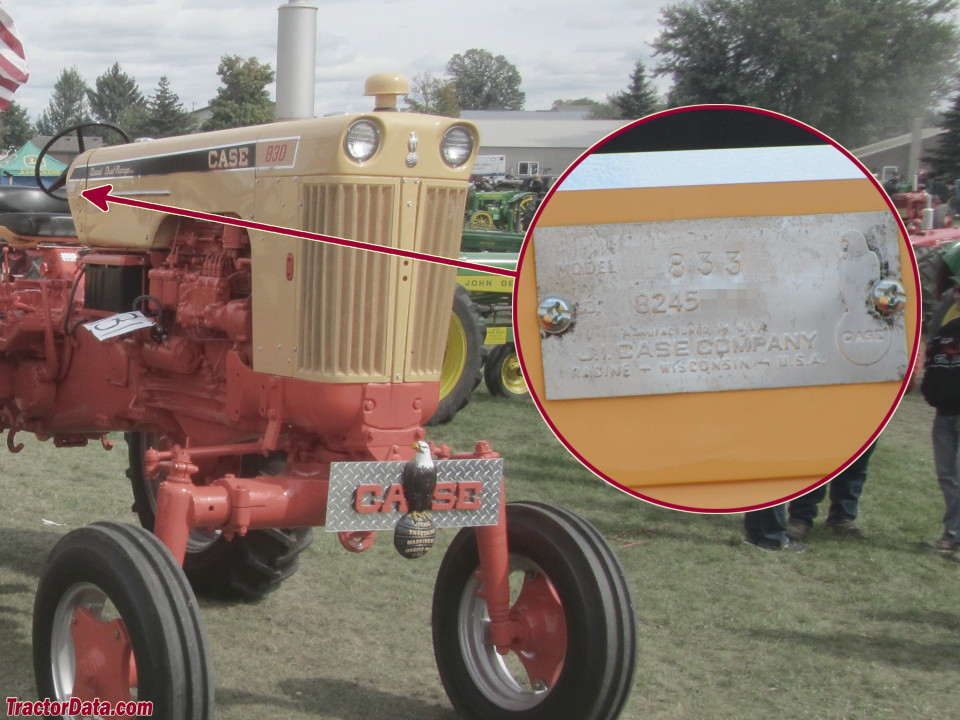

Location:Serial number plate on right side of the tractor's instrument panel.
photo of 833 serial number

Belt Pulley
Diameter:10.5 inches
26 cm
Width:7.25 inches
18 cm
RPM:1322 (Dual Range)
 1027 (Case-O-Matic 540)
 1261 (Case-O-Matic 1000)
